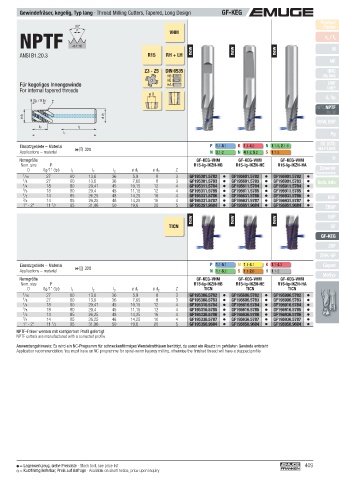

Gewindefräser, kegelig, Typ lang · Thread Milling Cutters, Tapered, Long Design GF-KEG
Product
60° VHM Finder
P
NPTF 1:16 v / f z
c

ANSI B1.20.3 R15 RH + LH new new new M
MF
Z3 - Z5 DIN 6535 UNC
HB UN, UNS
HE
Für kegeliges Innengewinde HA UNF
For internal tapered threads UNEF
ø D
G, Rp
9 Gg. / 9 thr. Z
NPT, NPTF
Rc, W
ø d 1 ø d 2
BSW, BSF
l 2 l 3
l 1 Pg
EG (STI)
Einsatzgebiete – Material  328 P 1.1- 5.1 K 1.1- 4.2 N 1.1-5, 2.1-6 SELF-LOCK
Applications – material N 3.1-2 N 4.1-2, 5.2 S 1.1-3
Nenngröße GF-KEG-VHM GF-KEG-VHM GF-KEG-VHM Tr
Nom. size P R15-lg-IKZN-HB R15-lg-IKZN-HE R15-lg-IKZN-HA
D Gg/1" (tpi) l 1 l 2 l 3 ø d 1 ø d 2 Z Zubehör
1 /16 27 60 13,6 36 5,9 8 3 GF195301.5782 GF195601.5782 GF195901.5782 Accessories
1 /8 27 60 13,6 36 7,65 8 3 GF195301.5783 GF195601.5783 GF195901.5783 Tech. Info
1
/4 18 80 20,41 45 10,15 12 4 GF195311.5784 GF195611.5784 GF195911.5784
3 /8 18 80 20,4 45 11,15 12 4 GF195311.5785 GF195611.5785 GF195911.5785
1
/2 14 85 26,25 48 14,25 16 4 GF195331.5786 GF195631.5786 GF195931.5786 BGF
3 /4 14 85 26,25 48 14,25 16 4 GF195331.5787 GF195631.5787 GF195931.5787
1
1" - 2" 11 /2 95 31,96 50 19,6 20 5 GF195351.9684 GF195651.9684 GF195951.9684 ZBGF
new new new GSF
TICN GF
GF-KEG
ZGF
ZIRK-GF

Einsatzgebiete – Material P 1.1- 5.1 M 1.1- 4.1 K 1.1- 4.2 Gigant
Applications – material  328 N 1.1- 5.2 S 1.1- 2.6 H 1.1-2
MoSys
Nenngröße GF-KEG-VHM GF-KEG-VHM GF-KEG-VHM
Nom. size P R15-lg-IKZN-HB R15-lg-IKZN-HE R15-lg-IKZN-HA
D Gg/1" (tpi) l 1 l 2 l 3 ø d 1 ø d 2 Z TICN TICN TICN
1 /16 27 60 13,6 36 5,9 8 3 GF195306.5782 GF195606.5782 GF195906.5782
1 /8 27 60 13,6 36 7,65 8 3 GF195306.5783 GF195606.5783 GF195906.5783
1 /4 18 80 20,41 45 10,15 12 4 GF195316.5784 GF195616.5784 GF195916.5784
3 /8 18 80 20,4 45 11,15 12 4 GF195316.5785 GF195616.5785 GF195916.5785
1 /2 14 85 26,25 48 14,25 16 4 GF195336.5786 GF195636.5786 GF195936.5786
3
/4 14 85 26,25 48 14,25 16 4 GF195336.5787 GF195636.5787 GF195936.5787
1
1" - 2" 11 /2 95 31,96 50 19,6 20 5 GF195356.9684 GF195656.9684 GF195956.9684

NPTF-Fräser werden mit korrigiertem Profi l gefertigt
NPTF cutters are manufactured with a corrected profi le
Anwendungshinweis: Es wird ein NC-Programm für schneckenförmiges Wendelnutfräsen benötigt, da sonst ein Absatz im gefrästen Gewinde entsteht

Application recommendation: You must have an NC programme for spiral-worm keyway milling, otherwise the fi nished thread will have a stepped profi le

= Lagerwerkzeug, siehe Preisliste · Stock tool, see price list 409
= Kurzfristig lieferbar, Preis auf Anfrage · Available on short notice, price upon inquiry
