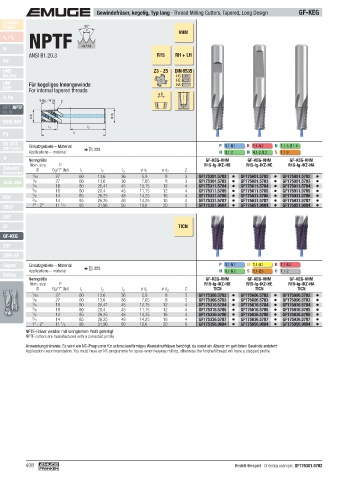

Gewindefräser, kegelig, Typ lang · Thread Milling Cutters, Tapered, Long Design GF-KEG
Product
Finder 60°
P
NPTF
v / f VHM
c
z
M 1:16
ANSI B1.20.3 R15 RH + LH
MF
UNC Z3 - Z5 DIN 6535
UN, UNS HB
HE
UNF Für kegeliges Innengewinde HA
UNEF For internal tapered threads
G, Rp ø D
9 Gg. / 9 thr. Z
NPT, NPTF
Rc, W
ø d 1 ø d 2
BSW, BSF
l 2 l 3
Pg l 1
EG (STI) P 1.1- 5.1 K 1.1- 4.2 N 1.1-5, 2.1-6
SELF-LOCK Einsatzgebiete – Material  328
Applications – material N 3.1-2 N 4.1-2, 5.2 S 1.1-3
Tr Nenngröße GF-KEG-VHM GF-KEG-VHM GF-KEG-VHM
Nom. size P R15-lg-IKZ-HB R15-lg-IKZ-HE R15-lg-IKZ-HA
Zubehör D Gg/1" (tpi) l l ø d ø d Z
Accessories l 1 2 3 1 2
1 /16 27 60 13,6 36 5,9 8 3 GF175301.5782 GF175601.5782 GF175901.5782
Tech. Info 1 /8 27 60 13,6 36 7,65 8 3 GF175301.5783 GF175601.5783 GF175901.5783
1
/4 18 80 20,41 45 10,15 12 4 GF175311.5784 GF175611.5784 GF175911.5784
3 /8 18 80 20,4 45 11,15 12 4 GF175311.5785 GF175611.5785 GF175911.5785
1 14 85 26,25 48 14,25 16 4
BGF /2 GF175331.5786 GF175631.5786 GF175931.5786
3 /4 14 85 26,25 48 14,25 16 4 GF175331.5787 GF175631.5787 GF175931.5787
1
ZBGF 1" - 2" 11 /2 95 31,96 50 19,6 20 5 GF175351.9684 GF175651.9684 GF175951.9684
GSF
GF TICN
GF-KEG
ZGF
ZIRK-GF

Gigant Einsatzgebiete – Material P 1.1- 5.1 M 1.1- 4.1 K 1.1- 4.2
Applications – material  328 N 1.1- 5.2 S 1.1- 2.6 H 1.1-2
MoSys
Nenngröße GF-KEG-VHM GF-KEG-VHM GF-KEG-VHM
Nom. size P R15-lg-IKZ-HB R15-lg-IKZ-HE R15-lg-IKZ-HA
D Gg/1" (tpi) l 1 l 2 l 3 ø d 1 ø d 2 Z TICN TICN TICN
1 /16 27 60 13,6 36 5,9 8 3 GF175306.5782 GF175606.5782 GF175906.5782
1 /8 27 60 13,6 36 7,65 8 3 GF175306.5783 GF175606.5783 GF175906.5783
1 /4 18 80 20,41 45 10,15 12 4 GF175316.5784 GF175616.5784 GF175916.5784
3 /8 18 80 20,4 45 11,15 12 4 GF175316.5785 GF175616.5785 GF175916.5785
1 /2 14 85 26,25 48 14,25 16 4 GF175336.5786 GF175636.5786 GF175936.5786
3
/4 14 85 26,25 48 14,25 16 4 GF175336.5787 GF175636.5787 GF175936.5787
1
1" - 2" 11 /2 95 31,96 50 19,6 20 5 GF175356.9684 GF175656.9684 GF175956.9684
NPTF-Fräser werden mit korrigiertem Profi l gefertigt

NPTF cutters are manufactured with a corrected profi le
Anwendungshinweis: Es wird ein NC-Programm für schneckenförmiges Wendelnutfräsen benötigt, da sonst ein Absatz im gefrästen Gewinde entsteht
Application recommendation: You must have an NC programme for spiral-worm keyway milling, otherwise the fi nished thread will have a stepped profi le

408 Bestell-Beispiel · Ordering example: GF175301.5782
