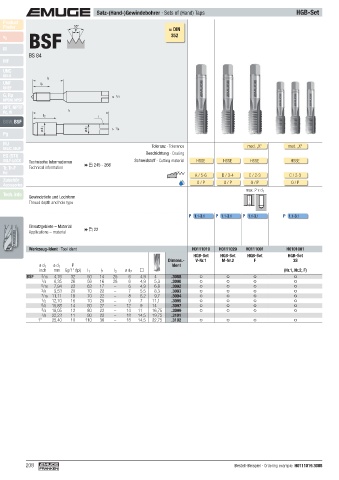

Satz-(Hand-)Gewindebohrer · Sets of (Hand) Taps HGB-Set
Product
Finder 55° ≈ DIN
BSF
P
v c 352
M
BS 84
MF
UNC
UN-8
l 3
UNF l 2
UNEF
G, Rp ≤ 1 /4
NPSM, NPSF
NPT, NPTF
Rc, W l 1
l 2
BSW, BSF
ø d 1 ø d 2 > 1 /4
Pg
MJ Toleranz · Tolerance
UNJC, UNJF med. „X“ med. „X“
Beschichtung · Coating
EG (STI)
SELF-LOCK Technische Informationen Schneidstoff · Cutting material HSSE HSSE HSSE HSSE
Tr, Tr-F Technical information  245 - 266
Rd
A / 5-6 D / 3-4 C / 2-3 C / 2-3
Zubehör O / P O / P O / P O / P
Accessories
max. 2 x d 1
Tech. Info
Gewindetiefe und Lochform
Thread depth and hole type
P 1.1- 3.1 P 1.1- 3.1 P 1.1- 3.1 P 1.1- 3.1
Einsatzgebiete – Material
Applications – material  22

Werkzeug-Ident · Tool ident H0111019 H0111029 H0111001 H0101001
HGB-Set HGB-Set HGB-Set HGB-Set
Dimens.- V-Nr.1 M-Nr.2 F 3S
ø d 1 ø d 1 P Ident
inch mm Gg/1" (tpi) l 1 l 2 l 3 ø d 2 (Nr.1, Nr.2, F)
BSF 3 /16 4,76 32 50 14 25 6 4,9 4 .3088
1 /4 6,35 26 56 16 28 6 4,9 5,3 .3090
5 /16 7,94 22 63 17 – 6 4,9 6,8 .3092
3 /8 9,53 20 70 22 – 7 5,5 8,3 .3093
7 /16 11,11 18 70 22 – 8 6,2 9,7 .3094
1 /2 12,70 16 70 20 – 9 7 11,1 .3095
5 /8 15,88 14 80 27 – 12 9 14 .3097
3 /4 19,05 12 80 22 – 14 11 16,75 .3099
7 /8 22,23 11 80 22 – 18 14,5 19,75 .3101
1" 25,40 10 110 36 – 18 14,5 22,75 .3102

208 Bestell-Beispiel · Ordering example: H0111019.3088
