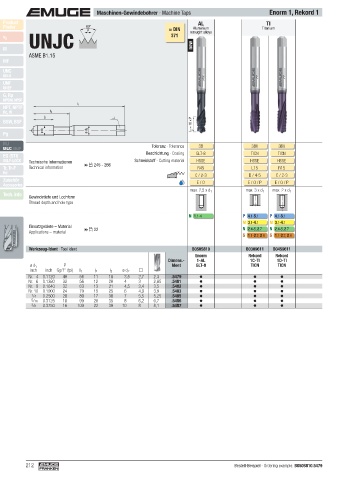

Page 212 - EMUGE

Maschinen-Gewindebohrer · Machine Taps Enorm 1, Rekord 1
Product AL TI
Finder 60° ≈ DIN wrought alloys Titanium
Aluminium
P
UNJC
v c 371
M new
ASME B1.15
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
l 1
NPT, NPTF
Rc, W l 3
l 2
BSW, BSF
ø d 1 ø d 2
Pg
MJ Toleranz · Tolerance
UNJC, UNJF 3B 3BX 3BX
Beschichtung · Coating GLT-8 TICN TICN
EG (STI)
SELF-LOCK Technische Informationen Schneidstoff · Cutting material HSSE HSSE HSSE
Tr, Tr-F Technical information  245 - 266 R45 L15 R15
Rd
C / 2-3 D / 4-5 C / 2-3
Zubehör E / O E / O / P E / O / P
Accessories
max. 2,5 x d 1 max. 3 x d 1 max. 2 x d 1
Tech. Info
Gewindetiefe und Lochform
Thread depth and hole type
N 1.1-4 P 4.1- 5.1 P 4.1- 5.1
M 3.1- 4.1 M 3.1- 4.1
Einsatzgebiete – Material N 2.4-5, 2.7 N 2.4-5, 2.7
Applications – material  22
S 1.1- 2.2, 2.4 S 1.1- 2.2, 2.4

Werkzeug-Ident · Tool ident B050S810 B0309611 B0459611
Enorm Rekord Rekord
Dimens.- 1-AL 1C-TI 1D-TI
ø d 1 P Ident GLT-8 TICN TICN
inch inch Gg/1" (tpi) l 1 l 2 l 3 ø d 2
Nr. 4 0.1120 40 56 11 18 3,5 2,7 2,3 .5479
Nr. 6 0.1380 32 56 12 20 4 3 2,85 .5481
Nr. 8 0.1640 32 63 13 21 4,5 3,4 3,5 .5482
Nr. 10 0.1900 24 70 15 25 6 4,9 3,9 .5483
1 /4 0.2500 20 80 17 30 7 5,5 5,25 .5485
5 /16 0.3125 18 90 20 35 8 6,2 6,7 .5486
3 /8 0.3750 16 100 22 39 10 8 8,1 .5487

212 Bestell-Beispiel · Ordering example: B050S810.5479
