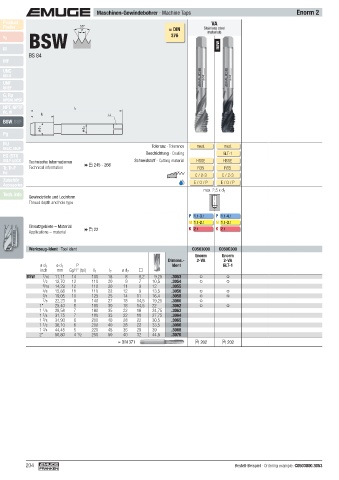

Page 204 - EMUGE

Maschinen-Gewindebohrer · Machine Taps Enorm 2
Product VA
Finder 55° ≈ DIN Stainless steel
P
BSW
materials
v c 376
M new
BS 84
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
NPT, NPTF l 1
Rc, W
l 2
BSW, BSF
ø d 1 ø d 2
Pg
MJ Toleranz · Tolerance
UNJC, UNJF med. med.
Beschichtung · Coating GLT-1
EG (STI)
SELF-LOCK Technische Informationen Schneidstoff · Cutting material HSSE HSSE
Tr, Tr-F Technical information  245 - 266 R35 R35
Rd
C / 2-3 C / 2-3
Zubehör E / O / P E / O / P
Accessories
max. 2,5 x d 1
Tech. Info
Gewindetiefe und Lochform
Thread depth and hole type
P 1.1- 3.1 P 1.1- 4.1
M 1.1- 2.1 M 1.1- 3.1
Einsatzgebiete – Material K 2.1 K 2.1
Applications – material  22

Werkzeug-Ident · Tool ident C0503000 C050C300
Enorm Enorm
Dimens.- 2-VA 2-VA
ø d 1 ø d 1 P Ident GLT-1
inch mm Gg/1" (tpi) l 1 l 2 ø d 2
BSW 7 /16 11,11 14 100 18 8 6,2 9,25 .3053
1 /2 12,70 12 110 20 9 7 10,5 .3054
9 /16 14,29 12 110 20 11 9 12 .3055
5 /8 15,88 11 110 22 12 9 13,5 .3056
3 /4 19,05 10 125 25 14 11 16,4 .3058
7 /8 22,23 9 140 27 18 14,5 19,25 .3060
1" 25,40 8 160 30 18 14,5 22 .3062
1 1 /8 28,58 7 180 35 22 18 24,75 .3063
1 1 /4 31,75 7 180 35 22 18 27,75 .3064
1 3 /8 34,93 6 200 40 28 22 30,5 .3065
1 1 /2 38,10 6 200 40 28 22 33,5 .3066
1 3 /4 44,45 5 220 45 36 29 39 .3068
2" 50,80 4 1 /2 250 50 40 32 44,5 .3070
≈ DIN 371  202  202

204 Bestell-Beispiel · Ordering example: C0503000.3053
