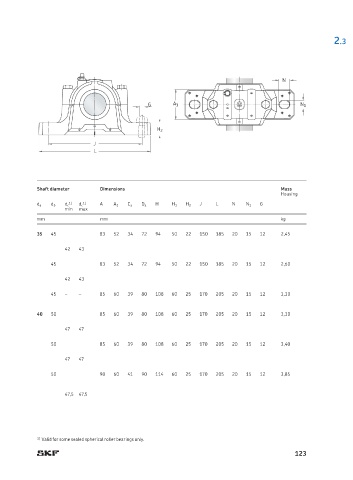

P. 127
2.3
N
G A 1 N 1
H 2
J
L
Shaft diameter Dimensions Mass
Ho using
1) 1) A H J L N G
d a d b d c d c A 1 C a D a H 1 H 2 N 1
min max
mm mm kg
35 45 83 52 34 72 94 50 22 150 185 20 15 12 2,45
42 43
45 83 52 34 72 94 50 22 150 185 20 15 12 2,60
42 43
45 – – 85 60 39 80 108 60 25 170 205 20 15 12 3,30
40 50 85 60 39 80 108 60 25 170 205 20 15 12 3,30
47 47
50 85 60 39 80 108 60 25 170 205 20 15 12 3,40
47 47
50 90 60 41 90 114 60 25 170 205 20 15 12 3,85
47,5 47,5
1) Valid for some sealed spherical roller bearings only.
123
