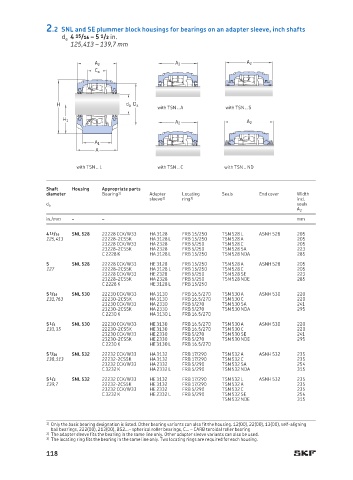

2.2 SNL and SE plummer block housings for bearings on an adapter sleeve, inch shafts
d a 4 15 /16 – 5 1 /2 in.
125,413 – 139,7 mm

A 2 A 2 A 2
C a

H d a D a
with TSN .. A with TSN .. S
H 1
A 2 A 2

A 1
A

with TSN .. L with TSN .. C with TSN .. ND

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Locating Seals End cover Width
sleeve 2) ring 3) incl.
seals
d a
A 2
in./mm – – mm
4 15 /16 SNL 528 22228 CCK/W33 HA 3128 FRB 15/250 TSN 528 L ASNH 528 205
125,413 22228-2CS5K HA 3128 L FRB 15/250 TSN 528 A 205
23228 CCK/W33 HA 2328 FRB 5/250 TSN 528 C 205
23228-2CS5K HA 2328 FRB 5/250 TSN 528 SA 223
C 2228 K HA 3128 L FRB 15/250 TSN 528 NDA 285
5 SNL 528 22228 CCK/W33 HE 3128 FRB 15/250 TSN 528 A ASNH 528 205
127 22228-2CS5K HA 3128 L FRB 15/250 TSN 528 C 205
23228 CCK/W33 HE 2328 FRB 5/250 TSN 528 SE 223
23228-2CS5K HA 2328 FRB 5/250 TSN 528 NDE 285
C 2228 K HE 3128 L FRB 15/250
5 3 /16 SNL 530 22230 CCK/W33 HA 3130 FRB 16.5/270 TSN 530 A ASNH 530 220
131,763 22230-2CS5K HA 3130 FRB 16.5/270 TSN 530 C 220
23230 CCK/W33 HA 2330 FRB 5/270 TSN 530 SA 241
23230-2CS5K HA 2330 FRB 5/270 TSN 530 NDA 295
C 2230 K HA 3130 L FRB 16.5/270
5 1 /4 SNL 530 22230 CCK/W33 HE 3130 FRB 16.5/270 TSN 530 A ASNH 530 220
133,35 22230-2CS5K HE 3130 FRB 16.5/270 TSN 530 C 220
23230 CCK/W33 HE 2330 FRB 5/270 TSN 530 SE 241
23230-2CS5K HE 2330 FRB 5/270 TSN 530 NDE 295
C 2230 K HE 3130 L FRB 16.5/270
5 7 /16 SNL 532 22232 CCK/W33 HA 3132 FRB 17/290 TSN 532 A ASNH 532 235
138,113 22232-2CS5K HA 3132 FRB 17/290 TSN 532 C 235
23232 CCK/W33 HA 2332 FRB 5/290 TSN 532 SA 254
C 3232 K HA 2332 L FRB 5/290 TSN 532 NDA 315
5 1 /2 SNL 532 22232 CCK/W33 HE 3132 FRB 17/290 TSN 532 L ASNH 532 235
139,7 22232-2CS5K HE 3132 FRB 17/290 TSN 532 A 235
23232 CCK/W33 HE 2332 FRB 5/290 TSN 532 C 235
C 3232 K HE 2332 L FRB 5/290 TSN 532 SE 254
TSN 532 NDE 315
1) Only the basic bearing designation is listed. Other bearing variants can also fit the housing. 12(00), 22(00), 13(00), self-aligning
ball bearings, 222(00), 213(00), BS2…– spherical roller bearings, C… – CARB toroidal roller bearing
2) The adapter sleeve fits the bearing in the same line only. Other adapter sleeve variants can also be used.
3) The locating ring fits the bearing in the same line only. Two locating rings are required for each housing.
