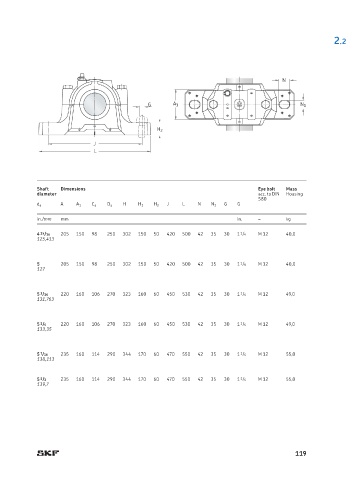

Page 123 - SKF-bearing-housings

2.2

N

G A 1 N 1

H 2
J
L

Shaft Dimensions Eye bolt Mass
diameter acc. to DIN Housing
580
A H J L N G G
d a A 1 C a D a H 1 H 2 N 1
in./mm mm in. – kg

4 15 /16 205 150 98 250 302 150 50 420 500 42 35 30 1 1 /4 M 12 40,0
125,413

5 205 150 98 250 302 150 50 420 500 42 35 30 1 1 /4 M 12 40,0
127

5 3 /16 220 160 106 270 323 160 60 450 530 42 35 30 1 1 /4 M 12 49,0
131,763

5 1 /4 220 160 106 270 323 160 60 450 530 42 35 30 1 1 /4 M 12 49,0
133,35

5 7 /16 235 160 114 290 344 170 60 470 550 42 35 30 1 1 /4 M 12 55,0
138,113

5 1 /2 235 160 114 290 344 170 60 470 550 42 35 30 1 1 /4 M 12 55,0
139,7

119
