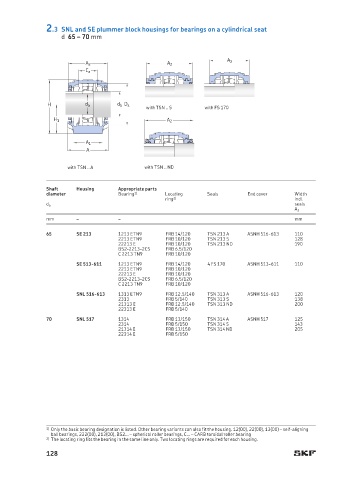

2.3 SNL and SE plummer block housings for bearings on a cylindrical seat
d 65 – 70 mm

A 2
A 2 A 2
C a

H d a d b D a
with TSN .. S with FS 170
H 1 A 2

A 1
A

with TSN .. A with TSN .. ND

Shaft Housing Appropriate parts
diameter Bearing 1) Locating Seals End cover Width
ring 2) incl.
seals
d a
A 2
mm – – mm
65 SE 213 1213 ETN9 FRB 14/120 TSN 213 A ASNH 516-613 110
2213 ETN9 FRB 10/120 TSN 213 S 128
22213 E FRB 10/120 TSN 213 ND 190
BS2-2213-2CS FRB 6.5/120
C 2213 TN9 FRB 10/120
SE 513-611 1213 ETN9 FRB 14/120 4 FS 170 ASNH 513-611 110
2213 ETN9 FRB 10/120
22213 E FRB 10/120
BS2-2213-2CS FRB 6.5/120
C 2213 TN9 FRB 10/120
SNL 516-613 1313 ETN9 FRB 12.5/140 TSN 313 A ASNH 516-613 120
2313 FRB 5/140 TSN 313 S 138
21313 E FRB 12.5/140 TSN 313 ND 200
22313 E FRB 5/140
70 SNL 517 1314 FRB 13/150 TSN 314 A ASNH 517 125
2314 FRB 5/150 TSN 314 S 143
21314 E FRB 13/150 TSN 314 ND 205
22314 E FRB 5/150

1) Only the basic bearing designation is listed. Other bearing variants can also fit the housing. 12(00), 22(00), 13(00) – self-aligning
ball bearings, 222(00), 213(00), BS2… – spherical roller bearings, C… – CARB toroidal roller bearing
2) The locating ring fits the bearing in the same line only. Two locating rings are required for each housing.
128
