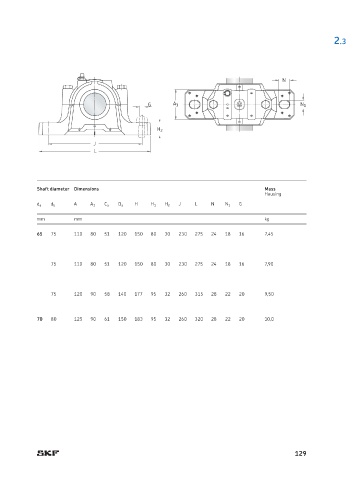

Page 133 - SKF-bearing-housings
P. 133
2.3
N
G A 1 N 1
H 2
J
L
Shaft diameter Dimensions Mass
Housing
A H J L N G
d a d b A 1 C a D a H 1 H 2 N 1
mm mm kg
65 75 110 80 51 120 150 80 30 230 275 24 18 16 7,45
75 110 80 51 120 150 80 30 230 275 24 18 16 7,90
75 120 90 58 140 177 95 32 260 315 28 22 20 9,50
70 80 125 90 61 150 183 95 32 260 320 28 22 20 10,0
