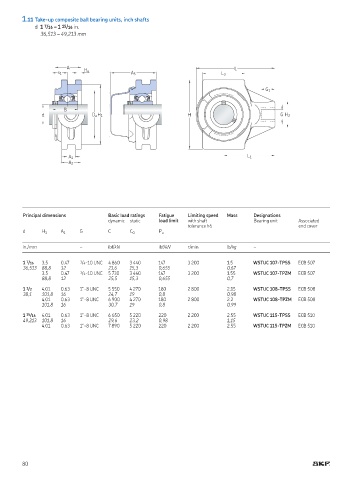

1.11 Take-up composite ball bearing units, inch shafts
d 1 7 /16 – 1 15 /16 in
36,513 – 49,213 mm
A L
H a
s 1 A 5 L 3
G 1
B
d D a H 1 H G H 2
A 1 L 1
A 2
Principal dimensions Basic load ratings Fatigue Limiting speed Mass Designations
dynamic static load limit with shaft Bearing unit Associated
tolerance h6 end cover
d H 1 A 1 G C C 0 P u
in /mm – ibf/kN ibf/kN r/min lb/kg –
1 7 /16 3 5 0 47 3 /4-10 UNC 4 860 3 440 147 3 200 1 5 WSTUC 107-TPSS ECB 507
36,513 88,8 12 21,6 15,3 0,655 0,67
3 5 0 47 3 /4-10 UNC 5 730 3 440 147 3 200 1 55 WSTUC 107-TPZM ECB 507
88,8 12 25,5 15,3 0,655 0,7
1 1 /2 4 01 0 63 1''-8 UNC 5 550 4 270 180 2 800 2 15 WSTUC 108-TPSS ECB 508
38,1 101,8 16 24,7 19 0,8 0,98
4 01 0 63 1''-8 UNC 6 900 4 270 180 2 800 2 2 WSTUC 108-TPZM ECB 508
101,8 16 30,7 19 0,8 0,99
1 15 /16 4 01 0 63 1''-8 UNC 6 650 5 220 220 2 200 2 55 WSTUC 115-TPSS ECB 510
49,213 101,8 16 29,6 23,2 0,98 1,15
4 01 0 63 1''-8 UNC 7 890 5 220 220 2 200 2 55 WSTUC 115-TPZM ECB 510
