Mounting and dismounting

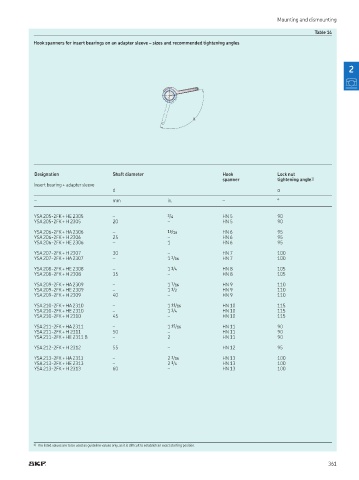

                                                                                                         Table 14
            Hook spanners for insert bearings on an adapter sleeve – sizes and recommended tightening angles



                                                                                                                     2








                                                                 α









            Designation               Shaft diameter                       Hook              Lock nut
                                                                           spanner           tightening angle 1)
            Insert bearing + adapter sleeve
                                      d                                                      α
            –                         mm                 in                –                 °

            YSA 205-2FK + HE 2305     –                  3 /4              HN 5              90
            YSA 205-2FK + H 2305      20                 –                 HN 5              90

            YSA 206-2FK + HA 2306     –                  15 /16            HN 6              95
            YSA 206-2FK + H 2306      25                 –                 HN 6              95
            YSA 206-2FK + HE 2306     –                  1                 HN 6              95
            YSA 207-2FK + H 2307      30                 –                 HN 7              100
            YSA 207-2FK + HA 2307     –                  1  3 /16          HN 7              100
            YSA 208-2FK + HE 2308     –                  1  1 /4           HN 8              105
            YSA 208-2FK + H 2308      35                 –                 HN 8              105
            YSA 209-2FK + HA 2309     –                  1  7 /16          HN 9              110
            YSA 209-2FK + HE 2309     –                  1  1 /2           HN 9              110
            YSA 209-2FK + H 2309      40                 –                 HN 9              110
            YSA 210-2FK + HA 2310     –                  1  11 /16         HN 10             115
            YSA 210-2FK + HE 2310     –                  1  3 /4           HN 10             115
            YSA 210-2FK + H 2310      45                 –                 HN 10             115
            YSA 211-2FK + HA 2311     –                  1  15 /16         HN 11             90
            YSA 211-2FK + H 2311      50                 –                 HN 11             90
            YSA 211-2FK + HE 2311 B   –                  2                 HN 11             90
            YSA 212-2FK + H 2312      55                 –                 HN 12             95

            YSA 213-2FK + HA 2313     –                  2  3 /16          HN 13             100
            YSA 213-2FK + HE 2313     –                  2  1 /4           HN 13             100
            YSA 213-2FK + H 2313      60                 –                 HN 13             100














            1)   The listed values are to be used as guideline values only, as it is dificult to establish an exact starting position.
