2 Insert bearings (Y-bearings)

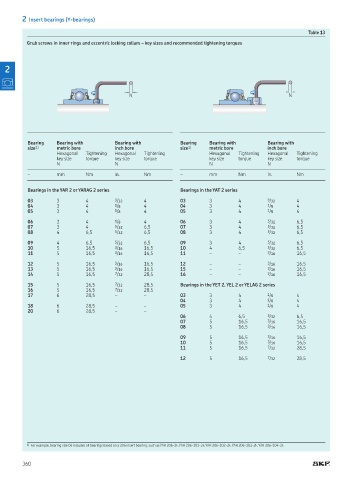

Table 13
Grub screws in inner rings and eccentric locking collars – key sizes and recommended tightening torques

2

N N

Bearing Bearing with Bearing with Bearing Bearing with Bearing with
size 1) metric bore inch bore size 1) metric bore inch bore
Hexagonal Tightening Hexagonal Tightening Hexagonal Tightening Hexagonal Tightening
key size torque key size torque key size torque key size torque
N N N N

– mm Nm in Nm – mm Nm in Nm

Bearings in the YAR 2 or YARAG 2 series Bearings in the YAT 2 series
03 3 4 3 /32 4 03 3 4 3 /32 4
04 3 4 1 /8 4 04 3 4 1 /8 4
05 3 4 1 /8 4 05 3 4 1 /8 4
06 3 4 1 /8 4 06 3 4 5 /32 6,5
07 3 4 5 /32 6,5 07 3 4 5 /32 6,5
08 4 6,5 5 /32 6,5 08 3 4 5 /32 6,5
09 4 6,5 5 /32 6,5 09 3 4 5 /32 6,5
10 5 16,5 3 /16 16,5 10 4 6,5 5 /32 6,5
11 5 16,5 3 /16 16,5 11 – – 3 /16 16,5
12 5 16,5 3 /16 16,5 12 – – 3 /16 16,5
13 5 16,5 3 /16 16,5 15 – – 3 /16 16,5
14 5 16,5 7 /32 28,5 16 – – 3 /16 16,5
15 5 16,5 7 /32 28,5 Bearings in the YET 2, YEL 2 or YELAG 2 series
16 5 16,5 7 /32 28,5
17 6 28,5 – – 03 3 4 1 /8 4
04 3 4 1 /8 4
18 6 28,5 – – 05 3 4 1 /8 4
20 6 28,5 – –
06 4 6,5 5 /32 6,5
07 5 16,5 3 /16 16,5
08 5 16,5 3 /16 16,5
09 5 16,5 3 /16 16,5
10 5 16,5 3 /16 16,5
11 5 16,5 7 /32 28,5

12 5 16,5 7 /32 28,5

1) For example, bearing size 06 includes all bearings based on a 206 insert bearing, such as YAR 206-2F, YAR 206-101-2F, YAR 206-102-2F, YAR 206-103-2F, YAR 206-104-2F

360
