Design considerations

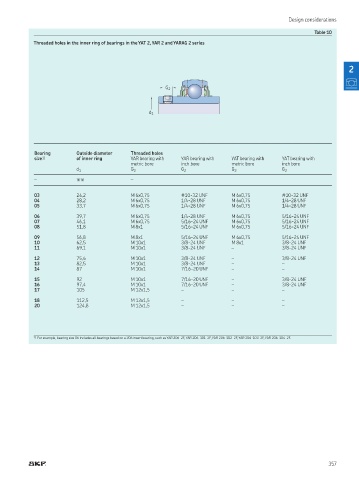

Table 10
Threaded holes in the inner ring of bearings in the YAT 2, YAR 2 and YARAG 2 series

2

G 2

d 1

Bearing Outside diameter Threaded holes
size 1) of inner ring YAR bearing with YAR bearing with YAT bearing with YAT bearing with
metric bore inch bore metric bore inch bore
d 1 G 2 G 2 G 2 G 2

– mm –

03 24,2 M 6x0,75 #10-32 UNF M 6x0,75 #10-32 UNF
04 28,2 M 6x0,75 1/4-28 UNF M 6x0,75 1/4-28 UNF
05 33,7 M 6x0,75 1/4-28 UNF M 6x0,75 1/4-28 UNF
06 39,7 M 6x0,75 1/4-28 UNF M 6x0,75 5/16-24 UNF
07 46,1 M 6x0,75 5/16-24 UNF M 6x0,75 5/16-24 UNF
08 51,8 M 8x1 5/16-24 UNF M 6x0,75 5/16-24 UNF

09 56,8 M 8x1 5/16-24 UNF M 6x0,75 5/16-24 UNF
10 62,5 M 10x1 3/8-24 UNF M 8x1 3/8-24 UNF
11 69,1 M 10x1 3/8-24 UNF – 3/8-24 UNF
12 75,6 M 10x1 3/8-24 UNF – 3/8-24 UNF
13 82,5 M 10x1 3/8-24 UNF – –
14 87 M 10x1 7/16-20 UNF – –
15 92 M 10x1 7/16-20 UNF – 3/8-24 UNF
16 97,4 M 10x1 7/16-20 UNF – 3/8-24 UNF
17 105 M 12x1,5 – – –
18 112,5 M 12x1,5 – – –
20 124,8 M 12x1,5 – – –

1) For example, bearing size 06 includes all bearings based on a 206 insert bearing, such as YAR 206-2F, YAR 206-101-2F, YAR 206-102-2F, YAR 206-103-2F, YAR 206-104-2F

357
