Mounting and dismounting

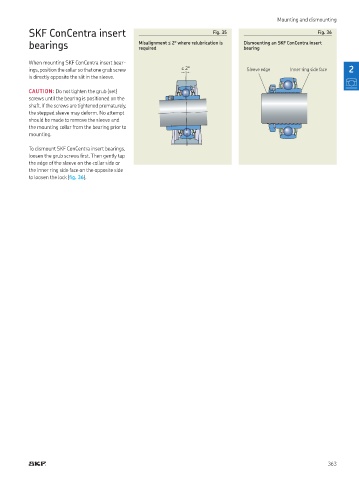

SKF ConCentra insert Fig. 35 Fig. 36
bearings Misalignment ≤ 2° where relubrication is Dismounting an SKF ConCentra insert
required
bearing
When mounting SKF ConCentra insert bear-
ings, position the collar so that one grub screw ≤ 2° Sleeve edge Inner ring side face 2
is directly opposite the slit in the sleeve

CAUTION: Do not tighten the grub (set)
screws until the bearing is positioned on the
shaft If the screws are tightened prematurely,
the stepped sleeve may deform No attempt
should be made to remove the sleeve and
the mounting collar from the bearing prior to
mounting

To dismount SKF ConCentra insert bearings,
loosen the grub screws irst. Then gently tap
the edge of the sleeve on the collar side or
the inner ring side face on the opposite side
to loosen the lock (ig. 36).

363
