Design considerations

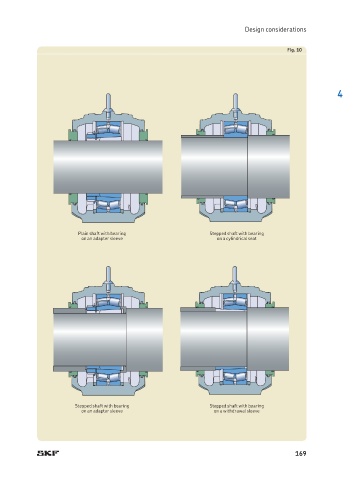

                                                                           Fig. 10




                                                                                        4





















                     Plain shaft with bearing          Stepped shaft with bearing
                      on an adapter sleeve               on a cylindrical seat

























                    Stepped shaft with bearing         Stepped shaft with bearing
                      on an adapter sleeve              on a withdrawal sleeve
