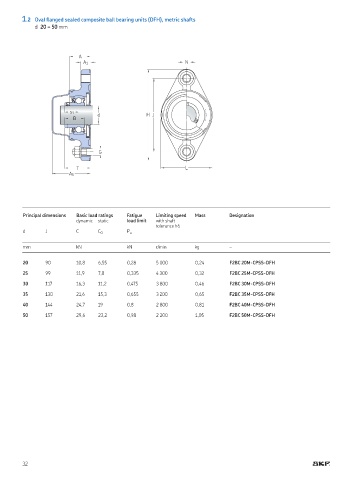

1.2 Oval flanged sealed composite ball bearing units (DFH), metric shafts
d 20 – 50 mm
A
A 1 N
s 1
d H J
B
G
T L
A 5
Principal dimensions Basic load ratings Fatigue Limiting speed Mass Designation
dynamic static load limit with shaft
tolerance h6
d J C C 0 P u
mm kN kN r/min kg –
20 90 10,8 6,55 0,28 5 000 0,24 F2BC 20M-CPSS-DFH
25 99 11,9 7,8 0,335 4 300 0,32 F2BC 25M-CPSS-DFH
30 117 16,3 11,2 0,475 3 800 0,46 F2BC 30M-CPSS-DFH
35 130 21,6 15,3 0,655 3 200 0,65 F2BC 35M-CPSS-DFH
40 144 24,7 19 0,8 2 800 0,81 F2BC 40M-CPSS-DFH
50 157 29,6 23,2 0,98 2 200 1,05 F2BC 50M-CPSS-DFH
