A.2  Tolerances

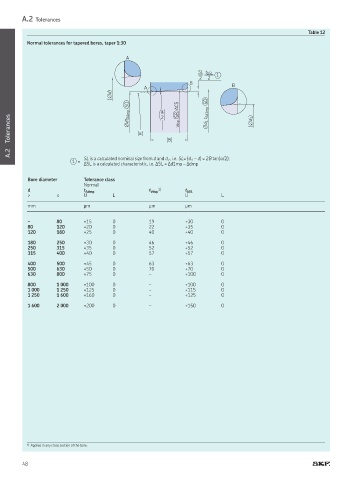

                                                                                                       Table 12
          Normal tolerances for tapered bores, taper 1:30


                                           A

                                                                   SL t ΔSL
                                                                     1
                                                                   2  2
                                                                B
                                                 A                            B
                                      (∅d)            α


    Tolerances                              ∅dt DΔmp   SD  (α)   2  (B)  Vdsp   SR  ACS  ∅d 1  t Δd1mp   SD  (∅d 1 )




    A.2

                                                                1
                                                         1
                         1 =  SL is a calculated nominal size from d and d , i.e. SL= (d  – d) = 2B tan(α/2);
                             ∆SL is a calculated characteristic, i.e. ∆SL = ∆d1mp – ∆dmp
          Bore diameter      Tolerance class
                             Normal
          d                  t ∆dmp               t Vdsp 1)   t ∆SL
          >         ≤        U        L                       U           L
          mm                 µm                   µm          µm

          –         80       +15      0           19          +30         0
          80        120      +20      0           22          +35         0
          120       180      +25      0           40          +40         0
          180       250      +30      0           46          +46         0
          250       315      +35      0           52          +52         0
          315       400      +40      0           57          +57         0
          400       500      +45      0           63          +63         0
          500       630      +50      0           70          +70         0
          630       800      +75      0           –           +100        0
          800       1 000    +100     0           –           +100        0
          1 000     1 250    +125     0           –           +115        0
          1 250     1 600    +160     0           –           +125        0
          1 600     2 000    +200     0           –           +150        0



























          1)   Applies in any cross section of the bore.
