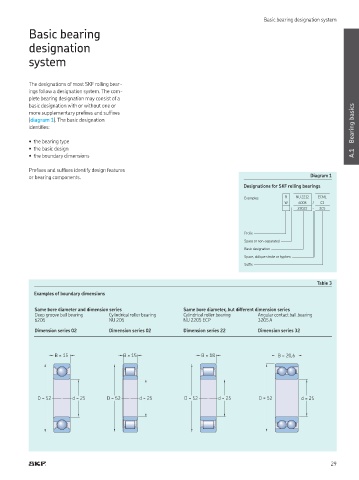

Basic bearing designation system
Basic bearing

designation

system

The designations of most SKF rolling bear-
ings follow a designation system. The com-
plete bearing designation may consist of a
basic designation with or without one or
more supplementary preixes and sufixes
(diagram 1). The basic designation Bearing basics
identiies:

• the bearing type
• the basic design
• the boundary dimensions A.1

Preixes and sufixes identify design features
or bearing components. Diagram 1
Designations for SKF rolling bearings

Examples R NU 2212 ECML
W 6008 / C3
23022 - 2CS

Preix
Space or non-separated
Basic designation
Space, oblique stroke or hyphen
Sufix

Table 3
Examples of boundary dimensions

Same bore diameter and dimension series Same bore diameter, but different dimension series
Deep groove ball bearing Cylindrical roller bearing Cylindrical roller bearing Angular contact ball bearing
6205 NU 205 NU 2205 ECP 3205 A
Dimension series 02 Dimension series 02 Dimension series 22 Dimension series 32

B = 15 B = 15 B = 18 B = 20,6

D = 52
D = 52 d = 25d = 25 D = 52 d = 25 D = 52 d = 25 d = 25 D = 52 d = 25

29
