Mounting and dismounting

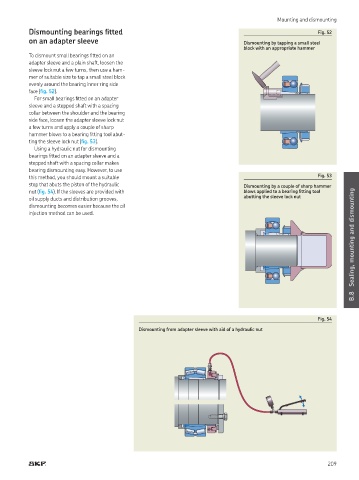

Dismounting bearings itted Fig. 52
on an adapter sleeve Dismounting by tapping a small steel
block with an appropriate hammer
To dismount small bearings itted on an
adapter sleeve and a plain shaft, loosen the
sleeve lock nut a few turns, then use a ham-
mer of suitable size to tap a small steel block
evenly around the bearing inner ring side
face (ig. 52)
For small bearings itted on an adapter
sleeve and a stepped shaft with a spacing
collar between the shoulder and the bearing
side face, loosen the adapter sleeve lock nut
a few turns and apply a couple of sharp
hammer blows to a bearing itting tool abut-
ting the sleeve lock nut (ig. 53)
Using a hydraulic nut for dismounting
bearings itted on an adapter sleeve and a
stepped shaft with a spacing collar makes
bearing dismounting easy However, to use
this method, you should mount a suitable Fig. 53
stop that abuts the piston of the hydraulic Dismounting by a couple of sharp hammer
Sealing, mounting and dismounting
nut (ig. 54) If the sleeves are provided with blows applied to a bearing itting tool
oil supply ducts and distribution grooves, abutting the sleeve lock nut
dismounting becomes easier because the oil
injection method can be used

B.8

Fig. 54
Dismounting from adapter sleeve with aid of a hydraulic nut
