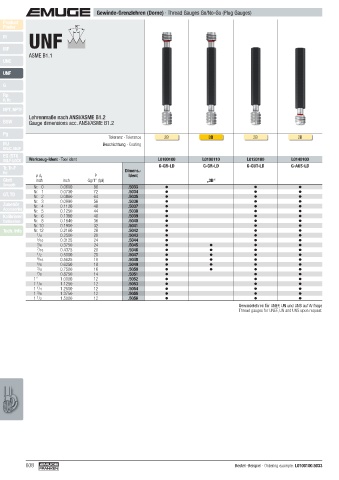

Gewinde-Grenzlehren (Dorne) · Thread Gauges Go/No-Go (Plug Gauges)
Product
Finder 60°
UNF
P
M
MF
ASME B1.1
UNC

UNF
G
Rp
R, Rc
NPT, NPTF
Lehrenmaße nach ANSI/ASME B1.2
BSW Gauge dimensions acc. ANSI/ASME B1.2

Pg
Toleranz · Tolerance 2B 3B 2B 2B
MJ Beschichtung · Coating
UNJC, UNJF
EG (STI)
SELF-LOCK Werkzeug-Ident · Tool ident L0100100 L0100110 L0120100 L0140100
Tr, Tr-F G-GR-LD G-GR-LD G-GUT-LD G-AUS-LD
Rd Dimens.-
ø d 1 P Ident
Glatt inch inch Gg/1" (tpi) „3B“
Smooth Nr. 0 0.0600 80 .5033
Nr. 1 0.0730 72 .5034
GT, TD Nr. 2 0.0860 64 .5035
Nr. 3 0.0990 56 .5036
Zubehör Nr. 4 0.1120 48 .5037
Accessories Nr. 5 0.1250 44 .5038
Kalibrieren Nr. 6 0.1380 40 .5039
Calibration Nr. 8 0.1640 36 .5040
Nr. 10 0.1900 32 .5041
Tech. Info Nr. 12 0.2160 28 .5042
1
/4 0.2500 28 .5043
5
/16 0.3125 24 .5044
3
/8 0.3750 24 .5045
7
/16 0.4375 20 .5046
1
/2 0.5000 20 .5047
9
/16 0.5625 18 .5048
5
/8 0.6250 18 .5049
3
/4 0.7500 16 .5050
7
/8 0.8750 14 .5051
1" 1.0000 12 .5052
1
1 /8 1.1250 12 .5053
1
1 /4 1.2500 12 .5054
3
1 /8 1.3750 12 .5055
1
1 /2 1.5000 12 .5056
Gewindelehren für UNEF, UN und UNS auf Anfrage
Thread gauges for UNEF, UN and UNS upon request

608 Bestell-Beispiel · Ordering example: L0100100.5033
