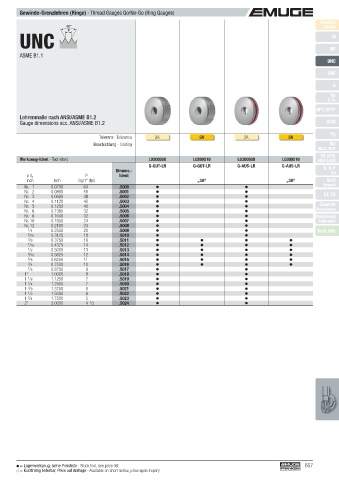

Page 607 - EMUGE

Gewinde-Grenzlehren (Ringe) · Thread Gauges Go/No-Go (Ring Gauges)
Product
60° Finder
UNC M
P

ASME B1.1 MF
UNC

UNF
G
Rp
R, Rc
NPT, NPTF
Lehrenmaße nach ANSI/ASME B1.2
Gauge dimensions acc. ANSI/ASME B1.2 BSW

Pg
Toleranz · Tolerance 2A 3A 2A 3A
Beschichtung · Coating MJ
UNJC, UNJF
EG (STI)
Werkzeug-Ident · Tool ident L0200500 L0200510 L0300500 L0300510 SELF-LOCK
G-GUT-LR G-GUT-LR G-AUS-LR G-AUS-LR Tr, Tr-F
Dimens.- Rd
ø d 1 P Ident
inch inch Gg/1" (tpi) „3A“ „3A“ Glatt
Nr. 1 0.0730 64 .5000 Smooth
Nr. 2 0.0860 56 .5001
Nr. 3 0.0990 48 .5002 GT, TD
Nr. 4 0.1120 40 .5003
Nr. 5 0.1250 40 .5004 Zubehör
Nr. 6 0.1380 32 .5005 Accessories
Nr. 8 0.1640 32 .5006 Kalibrierung
Nr. 10 0.1900 24 .5007 Calibration
Nr. 12 0.2160 24 .5008
1
/4 0.2500 20 .5009 Tech. Info
5
/16 0.3125 18 .5010
3
/8 0.3750 16 .5011
7
/16 0.4375 14 .5012
1
/2 0.5000 13 .5013
9
/16 0.5625 12 .5014
5
/8 0.6250 11 .5015
3
/4 0.7500 10 .5016
7
/8 0.8750 9 .5017
1" 1.0000 8 .5018
1
1 /8 1.1250 7 .5019
1
1 /4 1.2500 7 .5020
3
1 /8 1.3750 6 .5021
1
1 /2 1.5000 6 .5022
3
1 /4 1.7500 5 .5023
2" 2.0000 4 /2 .5024
1

= Lagerwerkzeug, siehe Preisliste · Stock tool, see price list 607
= Kurzfristig lieferbar, Preis auf Anfrage · Available on short notice, price upon inquiry
