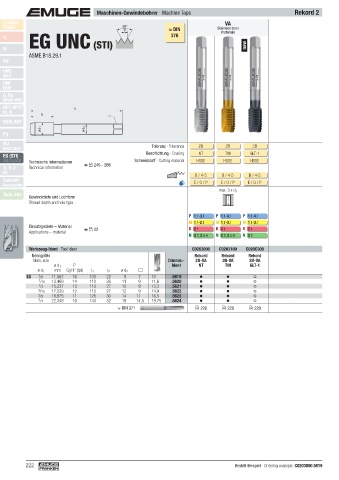

Page 222 - EMUGE

Maschinen-Gewindebohrer · Machine Taps Rekord 2
Product VA
Finder 60° Stainless steel
P ≈ DIN materials
376
v c
EG UNC (STI) new
M
ASME B18.29.1
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
NPT, NPTF l 1
Rc, W
l 2
BSW, BSF
ø d 1 ø d 2
Pg
MJ Toleranz · Tolerance
UNJC, UNJF 2B 2B 2B
Beschichtung · Coating NT TIN GLT-1
EG (STI)
SELF-LOCK Technische Informationen Schneidstoff · Cutting material HSSE HSSE HSSE
Tr, Tr-F Technical information  245 - 266
Rd
B / 4-5 B / 4-5 B / 4-5
Zubehör E / O / P E / O / P E / O / P
Accessories
max. 3 x d 1
Tech. Info
Gewindetiefe und Lochform
Thread depth and hole type
P 1.1- 3.1 P 1.1- 4.1 P 1.1- 4.1
M 1.1- 2.1 M 1.1- 3.1 M 1.1- 3.1
Einsatzgebiete – Material K 2.1 K 2.1 K 2.1
Applications – material  22
N 2.2, 2.5-6 N 2.2, 2.5-6 N 2.2

Werkzeug-Ident · Tool ident C0203000 C0203100 C020C300
Nenngröße Rekord Rekord Rekord
Nom. size Dimens.- 2B-VA 2B-VA 2B-VA
ø d 1 P Ident NT TIN GLT-1
ø d 1 mm Gg/1" (tpi) l 1 l 2 ø d 2
EG 3 /8 11,587 16 100 22 9 7 10 .5619
7 /16 13,469 14 110 26 11 9 11,6 .5620
1 /2 15,237 13 110 27 12 9 13,3 .5621
9 /16 17,039 12 110 27 12 9 14,9 .5622
5 /8 18,875 11 125 30 14 11 16,5 .5623
3 /4 22,349 10 140 32 18 14,5 19,75 .5624
≈ DIN 371  220  220  220

222 Bestell-Beispiel · Ordering example: C0203000.5619
