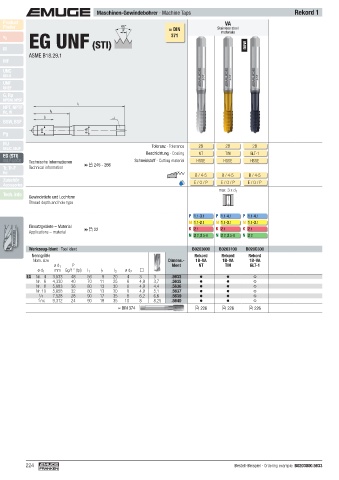

Maschinen-Gewindebohrer · Machine Taps Rekord 1
Product VA
Finder 60° Stainless steel
P ≈ DIN materials
371
v c
EG UNF (STI) new
M
ASME B18.29.1
MF
UNC
UN-8
UNF
UNEF
G, Rp
NPSM, NPSF
l 1
NPT, NPTF
Rc, W l 3
l 2
BSW, BSF
ø d 1 ø d 2
Pg
MJ Toleranz · Tolerance
UNJC, UNJF 2B 2B 2B
Beschichtung · Coating NT TIN GLT-1
EG (STI)
SELF-LOCK Technische Informationen Schneidstoff · Cutting material HSSE HSSE HSSE
Tr, Tr-F Technical information  245 - 266
Rd
B / 4-5 B / 4-5 B / 4-5
Zubehör E / O / P E / O / P E / O / P
Accessories
max. 3 x d 1
Tech. Info
Gewindetiefe und Lochform
Thread depth and hole type
P 1.1- 3.1 P 1.1- 4.1 P 1.1- 4.1
M 1.1- 2.1 M 1.1- 3.1 M 1.1- 3.1
Einsatzgebiete – Material K 2.1 K 2.1 K 2.1
Applications – material  22
N 2.2, 2.5-6 N 2.2, 2.5-6 N 2.2

Werkzeug-Ident · Tool ident B0203000 B0203100 B020C300
Nenngröße Rekord Rekord Rekord
Nom. size Dimens.- 1B-VA 1B-VA 1B-VA
ø d 1 P Ident NT TIN GLT-1
ø d 1 mm Gg/1" (tpi) l 1 l 2 l 3 ø d 2
EG Nr. 4 3,533 48 56 9 20 4 3 3 .5633
Nr. 6 4,330 40 70 11 25 6 4,9 3,7 .5635
Nr. 8 5,083 36 80 13 30 6 4,9 4,4 .5636
Nr. 10 5,858 32 80 13 30 6 4,9 5,1 .5637
1 /4 7,528 28 90 17 35 8 6,2 6,6 .5639
5 /16 9,312 24 90 18 35 10 8 8,25 .5640
≈ DIN 374  226  226  226

224 Bestell-Beispiel · Ordering example: B0203000.5633
