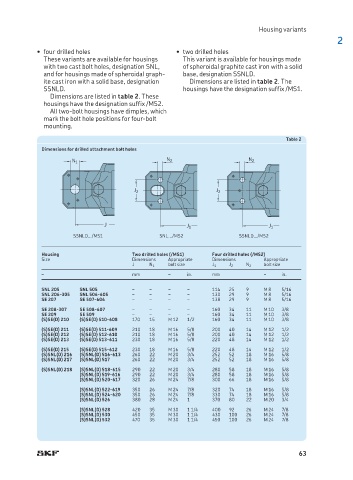

Page 67 - SKF-bearing-housings

Housing variants
2
• four drilled holes • two drilled holes
These variants are available for housings This variant is available for housings made
with two cast bolt holes, designation SNL, of spheroidal graphite cast iron with a solid
and for housings made of spheroidal graph- base, designation SSNLD.
ite cast iron with a solid base, designation Dimensions are listed in table 2. The
SSNLD. housings have the designation suffix /MS1.
Dimensions are listed in table 2. These
housings have the designation suffix /MS2.
All two-bolt housings have dimples, which
mark the bolt hole positions for four-bolt
mounting.
Table 2
Dimensions for drilled attachment bolt holes
N 2 N 2
N 1

J 2 J 2

J J 1 J 1
SSNLD.../MS1 SNL.../MS2 SSNLD.../MS2

Housing Two drilled holes (/MS1) Four drilled holes (/MS2)
Size Dimensions Appropriate Dimensions Appropriate
J N 1 bolt size J 1 J 2 N 2 bolt size
– mm – in. mm – in.
SNL 205 SNL 505 – – – – 114 25 9 M 8 5/16
SNL 206-305 SNL 506-605 – – – – 130 29 9 M 8 5/16
SE 207 SE 507-606 – – – – 138 29 9 M 8 5/16
SE 208-307 SE 508-607 – – – – 160 34 11 M 10 3/8
SE 209 SE 509 – – – – 160 34 11 M 10 3/8
(S)SE(D) 210 (S)SE(D) 510-608 170 15 M 12 1/2 160 34 11 M 10 3/8
(S)SE(D) 211 (S)SE(D) 511-609 210 18 M 16 5/8 200 40 14 M 12 1/2
(S)SE(D) 212 (S)SE(D) 512-610 210 18 M 16 5/8 200 40 14 M 12 1/2
(S)SE(D) 213 (S)SE(D) 513-611 230 18 M 16 5/8 220 48 14 M 12 1/2
(S)SE(D) 215 (S)SE(D) 515-612 230 18 M 16 5/8 220 48 14 M 12 1/2
(S)SNL(D) 216 (S)SNL(D) 516-613 260 22 M 20 3/4 252 52 18 M 16 5/8
(S)SNL(D) 217 (S)SNL(D) 517 260 22 M 20 3/4 252 52 18 M 16 5/8
(S)SNL(D) 218 (S)SNL(D) 518-615 290 22 M 20 3/4 280 58 18 M 16 5/8
(S)SNL(D) 519-616 290 22 M 20 3/4 280 58 18 M 16 5/8
(S)SNL(D) 520-617 320 26 M 24 7/8 300 66 18 M 16 5/8
(S)SNL(D) 522-619 350 26 M 24 7/8 320 74 18 M 16 5/8
(S)SNL(D) 524-620 350 26 M 24 7/8 330 74 18 M 16 5/8
(S)SNL(D) 526 380 28 M 24 1 370 80 22 M 20 3/4
(S)SNL(D) 528 420 35 M 30 1 1/4 400 92 26 M 24 7/8
(S)SNL(D) 530 450 35 M 30 1 1/4 430 100 26 M 24 7/8
(S)SNL(D) 532 470 35 M 30 1 1/4 450 100 26 M 24 7/8

63
