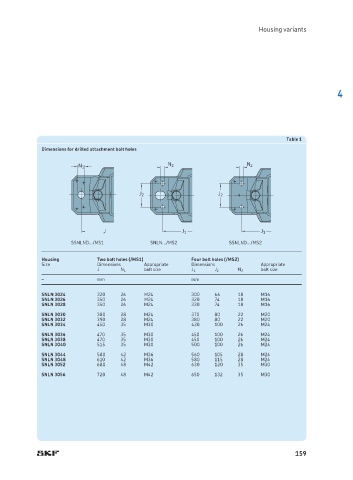

Page 163 - SKF-bearing-housings

Housing variants

4

Table 1
Dimensions for drilled attachment bolt holes
N 2 N 2
N 1

J 2 J 2

J J 1 J 1
SSNLND.../MS1 SNLN.../MS2 SSNLND.../MS2

Housing Two bolt holes (/MS1) Four bolt holes (/MS2)
Size Dimensions Appropriate Dimensions Appropriate
J N 1 bolt size J 1 J 2 N 2 bolt size
– mm mm
SNLN 3024 320 26 M24 300 66 18 M16
SNLN 3026 350 26 M24 320 74 18 M16
SNLN 3028 350 26 M24 330 74 18 M16
SNLN 3030 380 28 M24 370 80 22 M20
SNLN 3032 390 28 M24 380 80 22 M20
SNLN 3034 450 35 M30 430 100 26 M24
SNLN 3036 470 35 M30 450 100 26 M24
SNLN 3038 470 35 M30 450 100 26 M24
SNLN 3040 515 35 M30 500 100 26 M24
SNLN 3044 580 42 M36 560 105 28 M24
SNLN 3048 610 42 M36 580 115 28 M24
SNLN 3052 680 48 M42 630 120 35 M30
SNLN 3056 720 48 M42 650 132 35 M30

159
