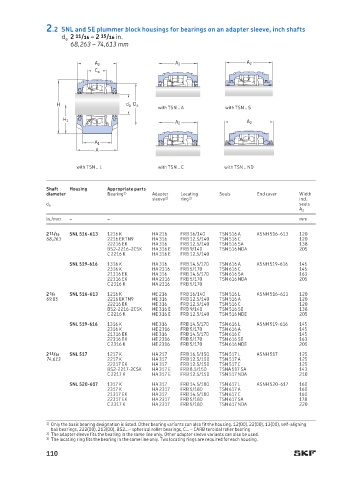

2.2 SNL and SE plummer block housings for bearings on an adapter sleeve, inch shafts
d a 2 11 /16 – 2 15 /16 in.
68,263 – 74,613 mm

A 2 A 2 A 2
C a

H d a D a
with TSN .. A with TSN .. S
H 1
A 2 A 2

A 1
A

with TSN .. L with TSN .. C with TSN .. ND

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Locating Seals End cover Width
sleeve 2) ring 3) incl.
seals
d a
A 2
in./mm – – mm
2 11 /16 SNL 516-613 1216 K HA 216 FRB 16/140 TSN 516 A ASNH 516-613 120
68,263 2216 EKTN9 HA 316 FRB 12.5/140 TSN 516 C 120
22216 EK HA 316 FRB 12.5/140 TSN 516 SA 138
BS2-2216-2CSK HA 316 E FRB 9/140 TSN 516 NDA 205
C 2216 K HA 316 E FRB 12.5/140
SNL 519-616 1316 K HA 316 FRB 14.5/170 TSN 616 A ASNH 519-616 145
2316 K HA 2316 FRB 5/170 TSN 616 C 145
21316 EK HA 316 FRB 14.5/170 TSN 616 SA 163
22316 EK HA 2316 FRB 5/170 TSN 616 NDA 205
C 2316 K HA 2316 FRB 5/170
2 3 /4 SNL 516-613 1216 K HE 216 FRB 16/140 TSN 516 L ASNH 516-613 120
69,85 2216 EKTN9 HE 316 FRB 12.5/140 TSN 516 A 120
22216 EK HE 316 FRB 12.5/140 TSN 516 C 120
BS2-2216-2CSK HE 316 E FRB 9/140 TSN 516 SE 138
C 2216 K HE 316 E FRB 12.5/140 TSN 516 NDE 205
SNL 519-616 1316 K HE 316 FRB 14.5/170 TSN 616 L ASNH 519-616 145
2316 K HE 2316 FRB 5/170 TSN 616 A 145
21316 EK HE 316 FRB 14.5/170 TSN 616 C 145
22316 EK HE 2316 FRB 5/170 TSN 616 SE 163
C 2316 K HE 2316 FRB 5/170 TSN 616 NDE 205
2 15 /16 SNL 517 1217 K HA 217 FRB 16.5/150 TSN 517 L ASNH 517 125
74,613 2217 K HA 317 FRB 12.5/150 TSN 517 A 125
22217 EK HA 317 FRB 12.5/150 TSN 517 C 125
BS2-2217-2CSK HA 317 E FRB 8.5/150 TSNA 517 SA 143
C 2217 K HA 317 E FRB 12.5/150 TSN 517 NDA 210
SNL 520-617 1317 K HA 317 FRB 14.5/180 TSN 617 L ASNH 520-617 160
2317 K HA 2317 FRB 5/180 TSN 617 A 160
21317 EK HA 317 FRB 14.5/180 TSN 617 C 160
22317 EK HA 2317 FRB 5/180 TSN 617 SA 178
C 2317 K HA 2317 FRB 5/180 TSN 617 NDA 220
1) Only the basic bearing designation is listed. Other bearing variants can also fit the housing. 12(00), 22(00), 13(00), self-aligning
ball bearings, 222(00), 213(00), BS2…– spherical roller bearings, C… – CARB toroidal roller bearing
2) The adapter sleeve fits the bearing in the same line only. Other adapter sleeve variants can also be used.
3) The locating ring fits the bearing in the same line only. Two locating rings are required for each housing.
