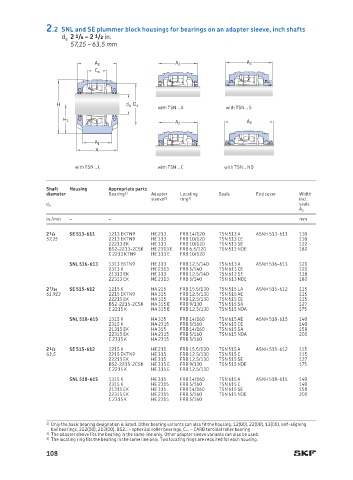

2.2 SNL and SE plummer block housings for bearings on an adapter sleeve, inch shafts
d a 2 1 /4 – 2 1 /2 in.
57,15 – 63,5 mm

A 2 A 2 A 2
C a

H d a D a
with TSN .. A with TSN .. S
H 1
A 2 A 2

A 1
A

with TSN .. L with TSN .. C with TSN .. ND

Shaft Housing Appropriate parts
diameter Bearing 1) Adapter Locating Seals End cover Width
sleeve 2) ring 3) incl.
seals
d a
A 2
in./mm – – mm
2 1 /4 SE 513-611 1213 EKTN9 HE 213 FRB 14/120 TSN 513 A ASNH 513-611 110
57,15 2213 EKTN9 HE 313 FRB 10/120 TSN 513 CE 110
22213 EK HE 313 FRB 10/120 TSN 513 SE 122
BS2-2213-2CSK HE 2313 E FRB 6.5/120 TSN 513 NDE 180
C 2213 KTN9 HE 313 E FRB 10/120
SNL 516-613 1313 EKTN9 HE 313 FRB 12.5/140 TSN 613 A ASNH 516-613 120
2313 K HE 2313 FRB 5/140 TSN 613 CE 120
21313 EK HE 313 FRB 12.5/140 TSN 613 SE 138
22313 EK HE 2313 FRB 5/140 TSN 613 NDE 180
2 7 /16 SE 515-612 1215 K HA 215 FRB 15.5/130 TSN 515 LA ASNH 515-612 115
61,913 2215 EKTN9 HA 315 FRB 12.5/130 TSN 515 AE 115
22215 EK HA 315 FRB 12.5/130 TSN 515 CE 115
BS2-2215-2CSK HA 315 E FRB 9/130 TSN 515 SA 127
C 2215 K HA 315 E FRB 12.5/130 TSN 515 NDA 175
SNL 518-615 1315 K HA 315 FRB 14/160 TSN 615 AE ASNH 518-615 140
2315 K HA 2315 FRB 5/160 TSN 615 CE 140
21315 EK HA 315 FRB 14/160 TSN 615 SA 158
22315 EK HA 2315 FRB 5/160 TSN 615 NDA 200
C 2315 K HA 2315 FRB 5/160
2 1 /2 SE 515-612 1215 K HE 215 FRB 15.5/130 TSN 515 A ASNH 515-612 115
63,5 2215 EKTN9 HE 315 FRB 12.5/130 TSN 515 C 115
22215 EK HE 315 FRB 12.5/130 TSN 515 SE 127
BS2-2215-2CSK HE 315 E FRB 9/130 TSN 515 NDE 175
C 2215 K HE 315 E FRB 12.5/130
SNL 518-615 1315 K HE 315 FRB 14/160 TSN 615 A ASNH 518-615 140
2315 K HE 2315 FRB 5/160 TSN 615 C 140
21315 EK HE 315 FRB 14/160 TSN 615 SE 158
22315 EK HE 2315 FRB 5/160 TSN 615 NDE 200
C 2315 K HE 2315 FRB 5/160
1) Only the basic bearing designation is listed. Other bearing variants can also fit the housing. 12(00), 22(00), 13(00), self-aligning
ball bearings, 222(00), 213(00), BS2…– spherical roller bearings, C… – CARB toroidal roller bearing
2) The adapter sleeve fits the bearing in the same line only. Other adapter sleeve variants can also be used.
3) The locating ring fits the bearing in the same line only. Two locating rings are required for each housing.
108
