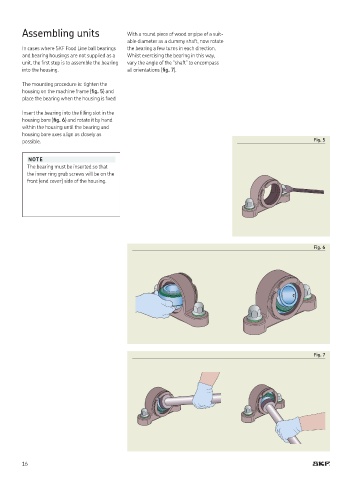

Assembling units With a round piece of wood or pipe of a suit-
able diameter as a dummy shaft, now rotate
In cases where SKF Food Line ball bearings the bearing a few turns in each direction
and bearing housings are not supplied as a Whilst exercising the bearing in this way,
unit, the first step is to assemble the bearing vary the angle of the “shaft” to encompass
into the housing all orientations (fig. 7)

The mounting procedure is: tighten the
housing on the machine frame (fig. 5) and
place the bearing when the housing is fixed

Insert the bearing into the filling slot in the
housing bore (fig. 6) and rotate it by hand
within the housing until the bearing and
housing bore axes align as closely as
possible Fig. 5

NOTE
The bearing must be inserted so that
the inner ring grub screws will be on the
front (end cover) side of the housing

Fig. 6

Fig. 7
