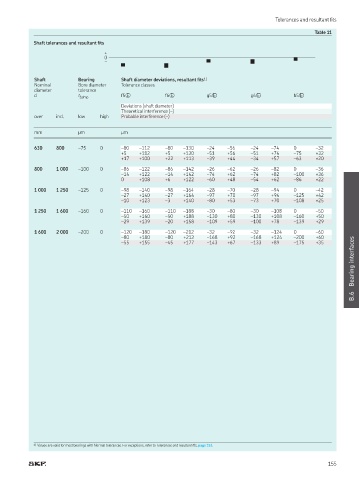

Page 157 - Rollingbearings

Tolerances and resultant its
Table 11
Shaft tolerances and resultant its
+
0
–

Shaft Bearing Shaft diameter deviations, resultant its 1)
Nominal Bore diameter Tolerance classes
diameter tolerance
d t Δdmp f5� f6� g5� g6� h5�
Deviations (shaft diameter)
Theoretical interference (–)
over incl low high Probable interference (–)

mm µm µm

630 800 –75 0 –80 –112 –80 –130 –24 –56 –24 –74 0 –32
+5 +112 +5 +130 –51 +56 –51 +74 –75 +32
+17 +100 +22 +113 –39 +44 –34 +57 –63 +20
800 1 000 –100 0 –86 –122 –86 –142 –26 –62 –26 –82 0 –36
–14 +122 –14 +142 –74 +62 –74 +82 –100 +36
0 +108 +6 +122 –60 +48 –54 +62 –86 +22
1 000 1 250 –125 0 –98 –140 –98 –164 –28 –70 –28 –94 0 –42
–27 +140 –27 +164 –97 +70 –97 +94 –125 +42
–10 +123 –3 +140 –80 +53 –73 +70 –108 +25
1 250 1 600 –160 0 –110 –160 –110 –188 –30 –80 –30 –108 0 –50
–50 +160 –50 +188 –130 +80 –130 +108 –160 +50
–29 +139 –20 +158 –109 +59 –100 +78 –139 +29

1 600 2 000 –200 0 –120 –180 –120 –212 –32 –92 –32 –124 0 –60
–80 +180 –80 +212 –168 +92 –168 +124 –200 +60
Bearing interfaces
–55 +155 –45 +177 –143 +67 –133 +89 –175 +35

B.6

1) Values are valid for most bearings with Normal tolerances For exceptions, refer to Tolerances and resultant its, page 153
