1
Terminology

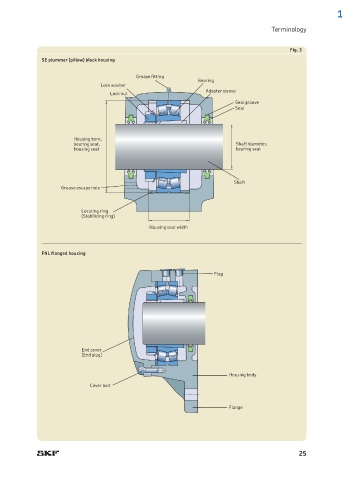

Fig. 3
SE plummer (pillow) block housing

Grease fitting
Bearing
Lock washer
Adapter sleeve
Lock nut
Seal groove
Seal

Housing bore,
bearing seat, Shaft diameter,
housing seat bearing seat

Shaft
Grease escape hole

Locating ring
(Stabilizing ring)
Housing seat width

FNL flanged housing

Plug

End cover
(End plug)

Housing body
Cover bolt

Flange

25
