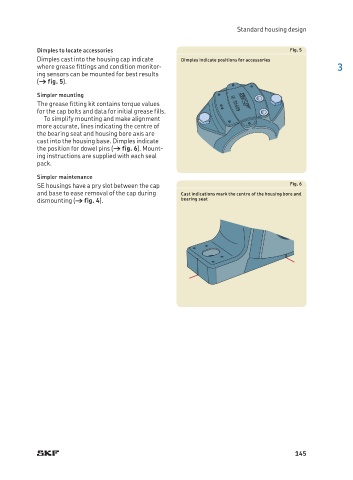

Standard housing design

Dimples to locate accessories Fig. 5
Dimples cast into the housing cap indicate Dimples indicate positions for accessories
where grease fittings and condition monitor- 3
ing sensors can be mounted for best results
(† fig. 5).
Simpler mounting
The grease fitting kit contains torque values
for the cap bolts and data for initial grease fills.
To simplify mounting and make alignment
more accurate, lines indicating the centre of
the bearing seat and housing bore axis are
cast into the housing base. Dimples indicate
the position for dowel pins († fig. 6). Mount-
ing instructions are supplied with each seal
pack.
Simpler maintenance
SE housings have a pry slot between the cap Fig. 6
and base to ease removal of the cap during Cast indications mark the centre of the housing bore and
dismounting († fig. 4). bearing seat

145
