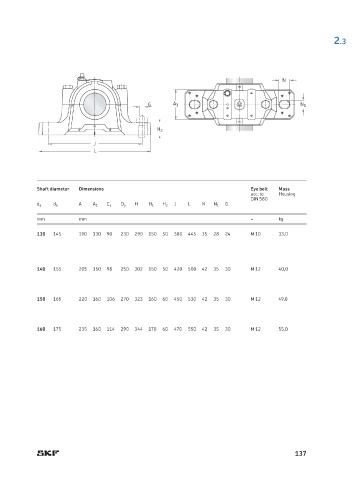

P. 141
2.3
N
G A 1 N 1
H 2
J
L
Shaft diameter Dimensions Eye bolt Mass
acc. to Housing
DIN 580
A H J L N G
d a d b A 1 C a D a H 1 H 2 N 1
mm mm – kg
130 145 190 130 90 230 290 150 50 380 445 35 28 24 M 10 33,0
140 155 205 150 98 250 302 150 50 420 500 42 35 30 M 12 40,0
150 165 220 160 106 270 323 160 60 450 530 42 35 30 M 12 49,0
160 175 235 160 114 290 344 170 60 470 550 42 35 30 M 12 55,0
137
