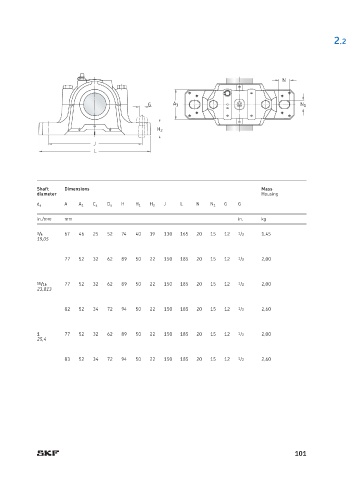

P. 105
2 .2
N
G A 1 N 1
H 2
J
L
Shaft Dimensions Mass
diameter Housing
A H J L N G G
d a A 1 C a D a H 1 H 2 N 1
in./mm mm in. kg
3 /4 67 46 25 52 74 40 19 130 165 20 15 12 1 /2 1,45
19,05
77 52 32 62 89 50 22 150 185 20 15 12 1 /2 2,00
15 /16 77 52 32 62 89 50 22 150 185 20 15 12 1 /2 2,00
23,813
82 52 34 72 94 50 22 150 185 20 15 12 1 /2 2,60
1 77 52 32 62 89 50 22 150 185 20 15 12 1 /2 2,00
25,4
83 52 34 72 94 50 22 150 185 20 15 12 1 /2 2,60
101
