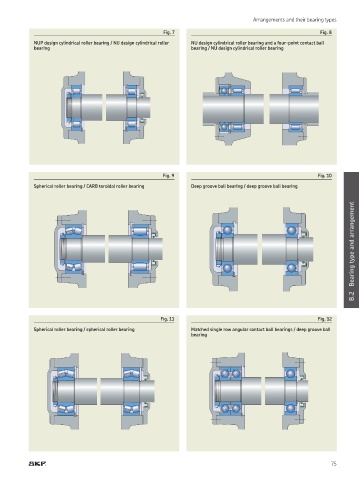

Arrangements and their bearing types
Fig. 7 Fig. 8
NUP design cylindrical roller bearing / NU design cylindrical roller NU design cylindrical roller bearing and a four-point contact ball
bearing bearing / NU design cylindrical roller bearing

Fig. 9 Fig. 10
Spherical roller bearing / CARB toroidal roller bearing Deep groove ball bearing / deep groove ball bearing

Bearing type and arrangement

B.2

Fig. 11 Fig. 12
Spherical roller bearing / spherical roller bearing Matched single row angular contact ball bearings / deep groove ball
bearing

75
