Bearing data

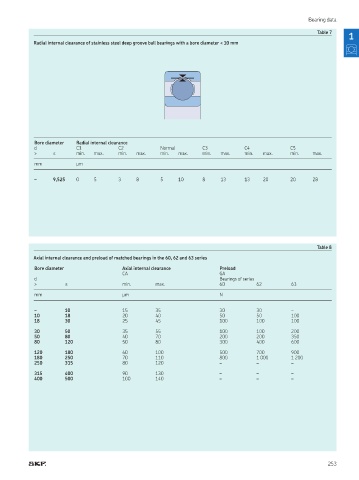

Table 7
1
Radial internal clearance of stainless steel deep groove ball bearings with a bore diameter < 10 mm

Bore diameter Radial internal clearance
d C1 C2 Normal C3 C4 C5
> ≤ min max min max min max min max min max min max
mm μm

– 9,525 0 5 3 8 5 10 8 13 13 20 20 28

Table 8
Axial internal clearance and preload of matched bearings in the 60, 62 and 63 series
Bore diameter Axial internal clearance Preload
CA GA
d Bearings of series
> ≤ min max 60 62 63
mm μm N

– 10 15 35 30 30 –
10 18 20 40 50 50 100
18 30 25 45 100 100 100
30 50 35 55 100 100 200
50 80 40 70 200 200 350
80 120 50 80 300 400 600
120 180 60 100 500 700 900
180 250 70 110 800 1 000 1 200
250 315 80 120 – – –
315 400 90 130 – – –
400 500 100 140 – – –

253
