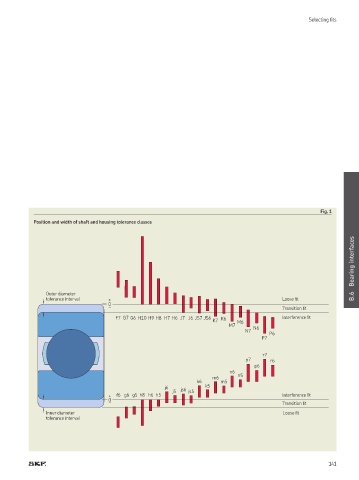

Fig. 1
Position and width of shaft and housing tolerance classes
Bearing interfaces
Outer diameter B.6
tolerance interval + Loose it
0
– Transition it
F7 G7 G6 H10 H9 H8 H7 H6 J7 J6 JS7 JS6 K6 Interference it
K7 M6
M7 N6
N7
P6
P7
r7
p7 r6
p6
n6
m6 n5
k6 m5
j6 js6 k5
j5 js5
+ f6 g6 g5 h8 h6 h5 Interference it
0
– Transition it
Inner diameter Loose it
tolerance interval
