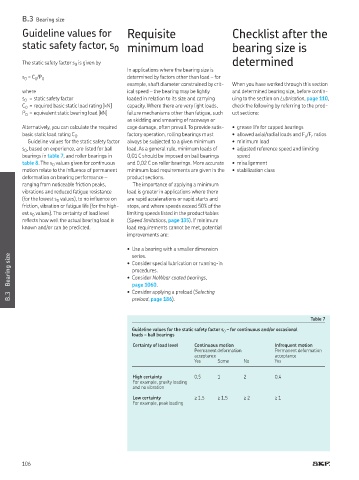

B.3  Bearing size
        Guideline values for               Requisite                          Checklist after the
        static safety factor, s                                               bearing size is
                                       0  minimum load

        The static safety factor s  is given by                               determined
                          0
                                           In applications where the bearing size is
        s  = C /P                          determined by factors other than load – for
         0
               0
             0
                                           example, shaft diameter constrained by crit-  When you have worked through this section
        where                              ical speed – the bearing may be lightly   and determined bearing size, before contin-
        s   = static safety factor         loaded in relation to its size and carrying   uing to the section on Lubrication, page 110,
         0
        C  = required basic static load rating [kN]  capacity. Where there are very light loads,   check the following by referring to the prod-
         0
        P  = equivalent static bearing load [kN]  failure mechanisms other than fatigue, such   uct sections:
         0
                                           as skidding and smearing of raceways or
        Alternatively, you can calculate the required   cage damage, often prevail. To provide satis-  • grease life for capped bearings
        basic static load rating C .       factory operation, rolling bearings must   • allowed axial/radial loads and F /F  ratios
                                                                                                      a
                                                                                                        r
                          0
          Guideline values for the static safety factor   always be subjected to a given minimum   • minimum load
        s , based on experience, are listed for ball   load. As a general rule, minimum loads of   • adjusted reference speed and limiting
         0
        bearings in table 7, and roller bearings in   0,01 C should be imposed on ball bearings   speed
        table 8. The s  values given for continuous   and 0,02 C on roller bearings. More accurate   • misalignment
                  0
        motion relate to the inluence of permanent   minimum load requirements are given in the   • stabilization class
        deformation on bearing performance –   product sections.
        ranging from noticeable friction peaks,   The importance of applying a minimum
        vibrations and reduced fatigue resistance   load is greater in applications where there
        (for the lowest s  values), to no inluence on   are rapid accelerations or rapid starts and
                    0
        friction, vibration or fatigue life (for the high-  stops, and where speeds exceed 50% of the
        est s  values). The certainty of load level   limiting speeds listed in the product tables
            0
        relects how well the actual bearing load is   (Speed limitations, page 135). If minimum
        known and/or can be predicted.     load requirements cannot be met, potential
                                           improvements are:
                                           • Use a bearing with a smaller dimension
    Bearing size                           • Consider special lubrication or running-in
                                             series.
                                             procedures.
                                           • Consider NoWear coated bearings,
                                             page 1060.
    B.3                                    • Consider applying a preload (Selecting
                                             preload, page 186).



                                                                                                        Table 7
                                                                             – for continuous and/or occasional
                                             Guideline values for the static safety factor s 0
                                             loads – ball bearings
                                             Certainty of load level  Continuous motion     Infrequent motion
                                                                 Permanent deformation      Permanent deformation
                                                                 acceptance                 acceptance
                                                                 Yes     Some     No        Yes

                                             High certainty      0,5     1        2         0,4
                                             For example, gravity loading
                                             and no vibration
                                             Low certainty       ≥ 1,5   ≥ 1,5    ≥ 2       ≥ 1
                                             For example, peak loading
