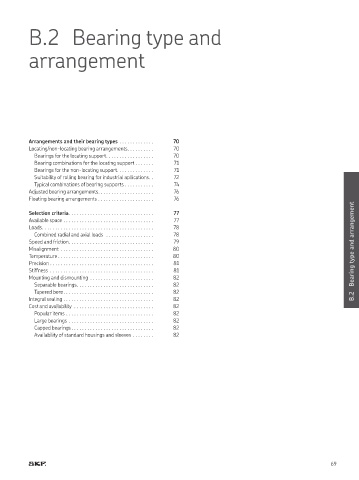

Bearing type and arrangement

B 2 Bearing type and

arrangement

Arrangements and their bearing types 70
Locating/non­locating bearing arrangements 70
Bearings for the locating support 70
Bearing combinations for the locating support 71
Bearings for the non-locating support 71
Suitability of rolling bearing for industrial apllications 72
Typical combinations of bearing supports 74
Adjusted bearing arrangements 76
Floating bearing arrangements 76

Selection criteria 77
Available space 77
Loads 78
Combined radial and axial loads 78
Speed and friction 79 Bearing type and arrangement
Misalignment 80
Temperature 80
Precision 81
Stiffness 81
Mounting and dismounting 82
Separable bearings 82
Tapered bore 82
Integral sealing 82 B.2
Cost and availability 82
Popular items 82
Large bearings 82
Capped bearings 82
Availability of standard housings and sleeves 82

69
