P. 385

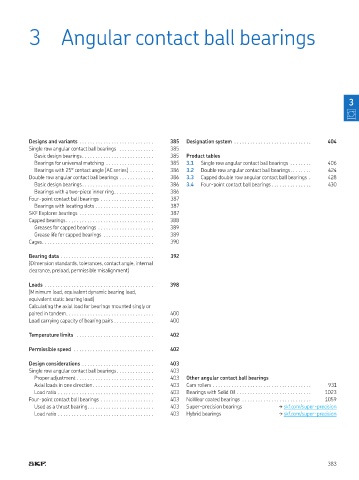

Angular contact ball bearings
3 Angular contact ball bearings
3
Designs and variants 385 Designation system 404
Single row angular contact ball bearings 385
Basic design bearings 385 Product tables
Bearings for universal matching 385 3.1 Single row angular contact ball bearings 406
Bearings with 25° contact angle (AC series) 386 3.2 Double row angular contact ball bearings 424
Double row angular contact ball bearings 386 3.3 Capped double row angular contact ball bearings 428
Basic design bearings 386 3.4 Four-point contact ball bearings 430
Bearings with a two-piece inner ring 386
Four-point contact ball bearings 387
Bearings with locating slots 387
SKF Explorer bearings 387
Capped bearings 388
Greases for capped bearings 389
Grease life for capped bearings 389
Cages 390
Bearing data 392
(Dimension standards, tolerances, contact angle, internal
clearance, preload, permissible misalignment)
Loads 398
(Minimum load, equivalent dynamic bearing load,
equivalent static bearing load)
Calculating the axial load for bearings mounted singly or
paired in tandem 400
Load carrying capacity of bearing pairs 400
Temperature limits 402
Permissible speed 402
Design considerations 403
Single row angular contact ball bearings 403
Proper adjustment 403 Other angular contact ball bearings
Axial loads in one direction 403 Cam rollers 931
Load ratio 403 Bearings with Solid Oil 1023
Four-point contact ball bearings 403 NoWear coated bearings 1059
Used as a thrust bearing 403 Super-precision bearings † skf com/super-precision
Load ratio 403 Hybrid bearings † skf com/super-precision
383
