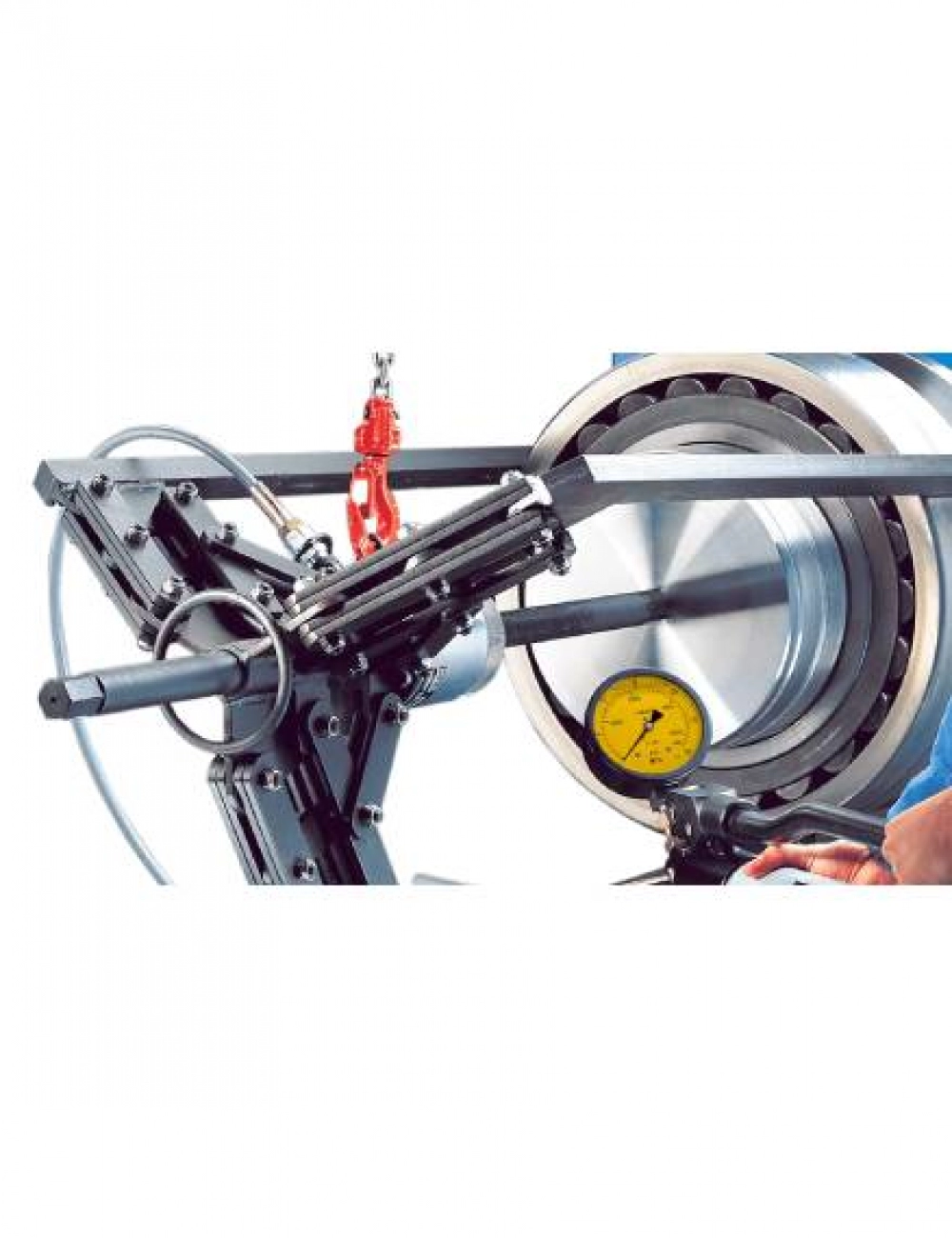

TMHP Series

Designation

• Width of grip : 195 - 386 mm ( 7.7 –15.2 in.)
• Effective arm length : 264 mm (10.4 in.)
• Claw height : 30 mm ( 1.18 in. )
• Stroke : 100 mm ( 3.9 in.)
• Maximum withdrawal force : 150 kN (17 US ton)

Designation

• Width of grip : 290–500 mm (11.4–19.7 in.)
• Effective arm length : 170 mm (6.7 in.)
• Claw height : 35 mm (1.4 in.)
• Stroke : 50 mm (2 in.)
• Maximum withdrawal force : 300 kN(34 US ton)

Designation

• Width of grip : 290–500 mm (11.4–19.7 in.)
• Effective arm length : 350 mm (13.7 in.)
• Claw height : 35 mm (1.4 in.)
• Stroke : 50 mm (2 in.)
• Maximum withdrawal force : 300 kN(34 US ton)

Designation

• Width of grip : 290–500 mm (11.4–19.7 in.)
• Effective arm length : 600 mm (23.6 in.)
• Claw height : 35 mm (1.4 in.)
• Stroke : 50 mm (2 in.)
• Maximum withdrawal force : 300 kN(34 US ton)

Designation

• Width of grip : 310–506 mm (12.2–19.9 in.)
• Effective arm length : 140 mm (5.5 in.)
• Claw height : 40 mm (1.6 in.)
• Stroke : 40 mm (1.6 in.)
• Maximum withdrawal force : 500 kN (56 US ton)

Designation

• Width of grip : 310–506 mm (12.2–19.9 in.)
• Effective arm length : 320 mm (12.6 in.)
• Claw height : 40 mm (1.6 in.)
• Stroke : 40 mm (1.6 in.)
• Maximum withdrawal force : 500 kN (56 US ton)

Designation

• Width of grip : 310–506 mm (12.2–19.9 in.)
• Effective arm length : 570 mm (22.4 in.)
• Claw height : 40 mm (1.6 in.)
• Stroke : 40 mm (1.6 in.)
• Maximum withdrawal force : 500 kN (56 US ton)
