TKSA Series

Technical data

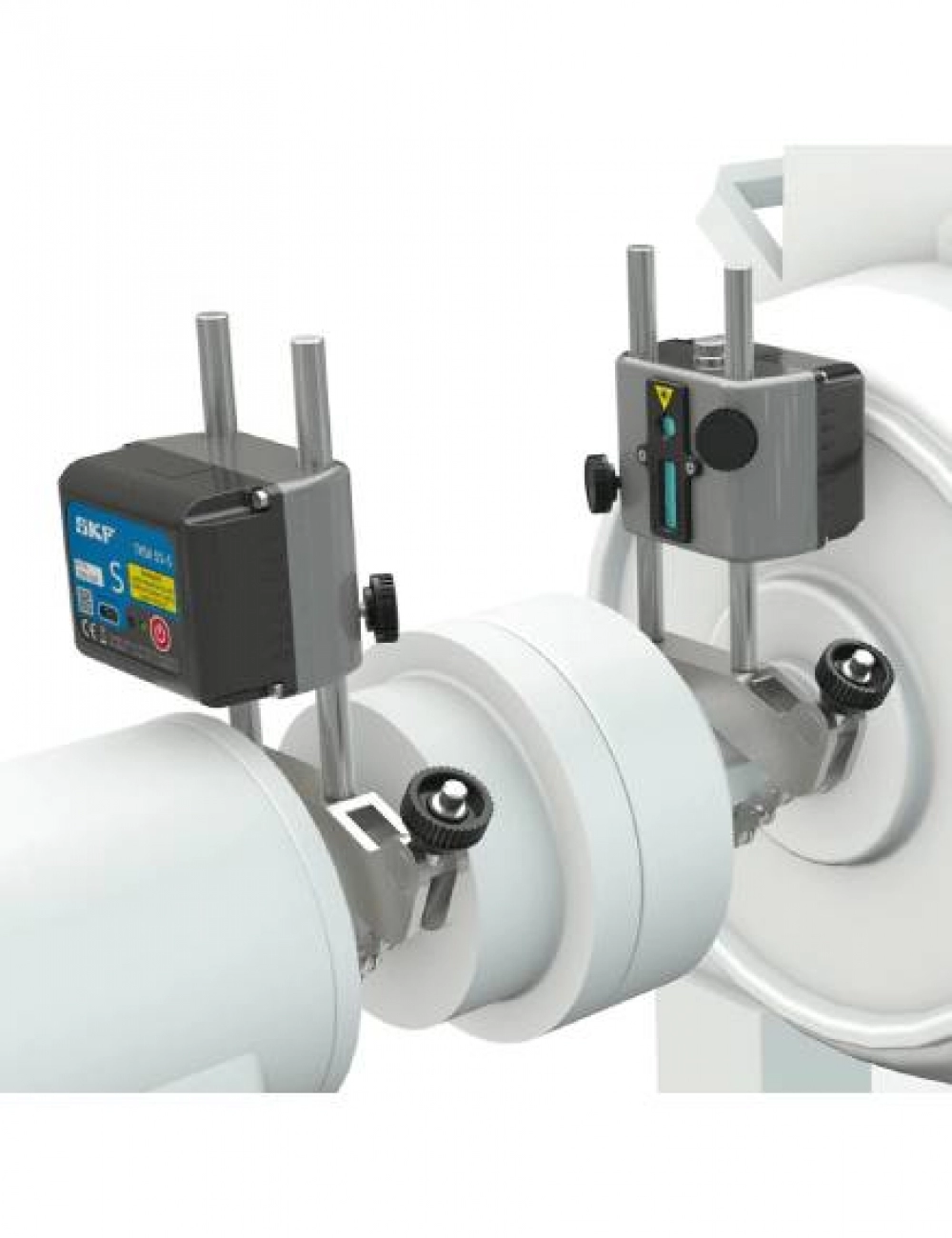

• Sensors and communication : 2× Inductive proximity sensors Inclinometer ±0.5°, Bluetooth 4.0 LE
• System measuring distance : 0 to 185 mm (0 to 7.3 in.) between brackets 3 × reference bars included up to 200 mm (7.9 in.)
• Shaft diameters : 20 to 160 mm (0.8 to 6.3 in.)
• Max. coupling height : 55 mm (2.2 in.) with standard 80 mm rods
• Operating time : Up to 18 hours, rechargeable LiPo battery
• DU Operating time : N/A
• Operating device : TKSA DISPLAY2, Samsung Galaxy Tab Active 2 and iPad Mini recommended iPad, iPod Touch, iPhone SE, Galaxy S6 or above (all not included)
• Operating system requirements : Apple iOS 9 or Android OS 4.4.2 (and above)
• Operating temperature : 0 to 45 °C (32 to 113 °F)

Technical data

• Sensors and communication : 29 mm (1.1 in.) CCD with red line laser Class 2 Inclinometer ±0.5°, Wired, USB cables
• System measuring distance : 0,07 to 4 m (0.23 to 13.1 ft) (up to 2 m (6.6 ft) with cables supplied)
• Shaft diameters : 20 to 150 mm (0.8 to 5.9 in.) 300 mm (11.8 in.)with optional extension chains (not included)
• Max. coupling height : 105 mm (4.2 in.) with standard rods 195 mm (7.7 in.) with optional extension rods (not included)
• Operating time : N/A
• Operating device : 5.6" colour resistive touchscreen LCD display. High Impact PC/ABS with overmould
• Operating system requirements : N/A
• DU Operating time : Up to 7 hours (100% backlight)
• Operating temperature : 0 to 45 °C (32 to 113 °F)

Technical data

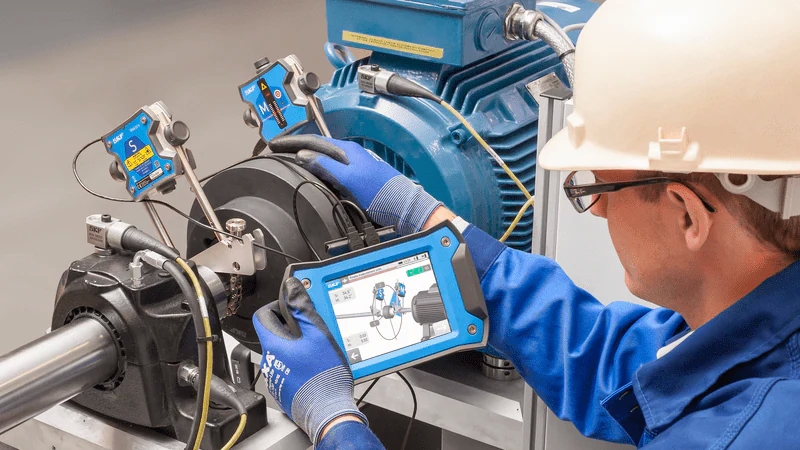

• Sensors and communication : 29 mm (1.1 in.) CCD with line laser Class 2 Inclinometer ±0.5°; Bluetooth 4.0 LE and wired, USB cables
• System measuring distance : 0.07 to 4 m (0.23 to 13.1 ft)
• Shaft diameters : 20 to 160 mm (0.8 to 6.3 in.)
• Max. coupling height : 105 mm (4.2 in.) with standard rods 195 mm (7.7 in.) with extension rods (included)
• Operating time : Up to 18 hours, rechargeable LiPo battery
• DU Operating time : Up to 8 hours (100% backlight)
• Operating device : 5.6" colour resistive touchscreen LCD display. High Impact PC/ABS with overmould
• Operating system requirements : N/A
• Operating temperature : 0 to 45 °C (32 to 113 °F)

Technical data

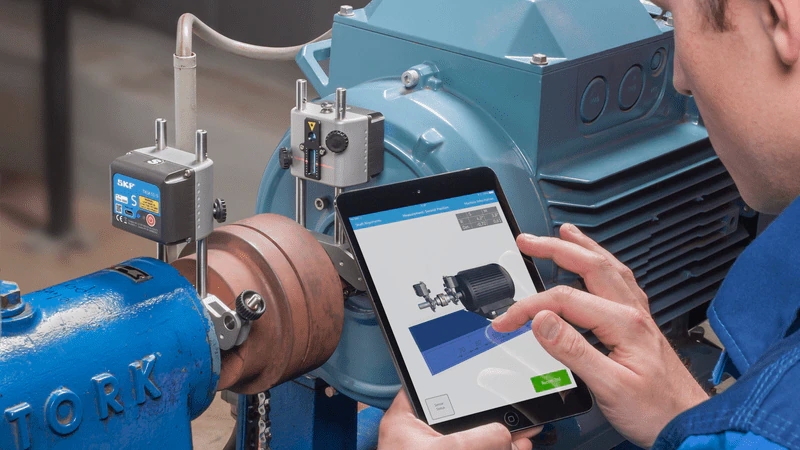

• Sensors and communication : 20 mm (0.8 in.) PSD with line laser Class 2 Inclinometer ±0.1°; Bluetooth 4.0 LE
• System measuring distance : 0.07 to 5 m (0.23 to 16.4 ft)
• Shaft diameters : 20 to 150 mm (0.8 to 5.9 in.) 450 mm (17.7 in.) with extension chains (included)
• Max. coupling height : 45 mm (1.8 in.) with standard rods plus 120 mm (4.7 in.) per set of extension rods
• Operating time : Up to 8 hours, rechargeable Li-ion battery fast charging: 10 min. charging for 1h usage
• DU Operating time : N/A
• Operating device : TKSA DISPLAY2, Samsung Galaxy Tab Active 2 and iPad Mini recommended iPad, iPod Touch, iPhone SE, Galaxy S6 or above (all not included)
• Operating system requirements : Apple iOS 9 or Android OS 4.4.2 (and above)
• Operating temperature : 0 to 45 °C (32 to 113 °F)

Technical data

• Sensors and communication : 20 mm (0.8 in) 2nd gen. PSD with line laser Class 2 inclinometer ±0.1°; Bluetooth 4.0 LE
• System measuring distance : 0.04 to 10 m (0.13 to 32.8 ft)
• Shaft diameters : 20 to 150 mm (0.8 to 5.9 in.) 450 mm (17.7 in.) with extension chains (included)
• Max. coupling height : 45 mm (1.8 in.) with standard rods plus 120 mm (4.7 in.) per set of extension rods
• Operating time : Up to 8 hours, rechargeable Li-ion battery fast charging: 10 min. charging for 1h usage
• DU Operating time : N/A
• Operating device : TKSA DISPLAY2, Samsung Galaxy Tab Active 2 and iPad Mini recommended iPad, iPod Touch, iPhone SE, Galaxy S6 or above (all not included)
• Operating system requirements : Apple iOS 9 or Android OS 4.4.2 (and above)
• Operating temperature : 0 to 45 °C (32 to 113 °F)
