Pressure sensors

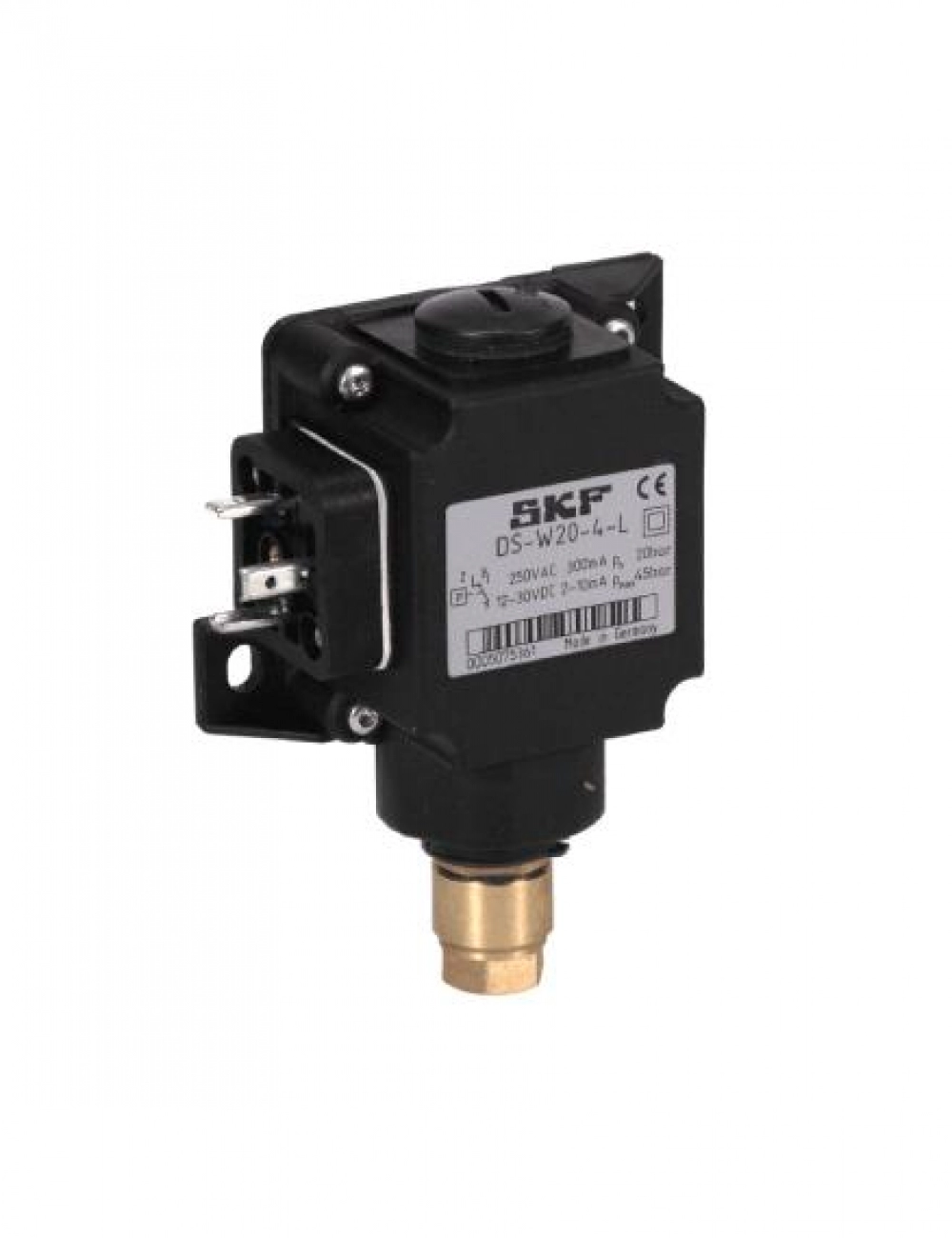

Features and benefits
Inexpensive mechanical diaphragm pressure switches, Micro switch is designed as a change-over switch and can be used as both a normally closed contact (NC) and a normally open contact (NO), Switches are available for rising and falling pressures from 1 to 30 bar (14.5 to 435 psi) and have non-adjustable increments

Applications
Machine tools, Printing machines, Wind, Vehicle, Steel and heavy industries

Features and benefits
Available for a pressure rating from 0 to 45 bar in fixed increments, Electrical connection is established via screwed contacts, tab connectors, circular connectors or rectangular plug connectors, Pressure monitoring, dependent upon the mechanical design of resulting pressure and preloaded spring force of the pressure spring, Mechanical switch can be used as both a normally closed contact (NC) and a normally open contact (NO)

Applications
Machine tools, Printing machines, Vehicles

Features and benefits
Adaptable to VR lubricant metering devices due to same hole pattern, wall distance and connections, Micro switch is designed as a change-over switch; can be used as both a normally closed contact (NC) and a normally open contact (NO), Available for rising and falling pressures from 20 to 300 bar in 10-bar increments, No grease bleeding at measuring point Pressure switch permits continuous lubricant flow without dead space, Suitable for use with unstable greases with a tendency to separate into soap and oil under high pressure

Applications
Machine tools, Printing machines, Wind, Vehicle, Steel and heavy industries

Features and benefits
Simple pressure switch, Adjustable pressure ranges for decreasing and increasing pressures to match system requirements, Use as single pressure switch or in a system with controller and solenoid valve

Applications
Paper converting, Plastic processing, Printing, Packaging, Metalworking, Material handling equipment

Features and benefits
IO-Link, Available for rising and falling pressures from 1 to 40 bar in 0,5 bar increment, Can be operated with both, hysteresis and window function modes, Encodable access protection, Digital and analog output

Applications
Machine tools, Printing machines, Wind, Vehicle, Steel and heavy industries

Features and benefits
Available for rising and falling pressures from 0 to 100 bar in 0.5-bar increments, Four-digit, digital display indicates switching with LEDs, Can operate in switching point, hysteresis and window function modes, Diagnostic output based on the DESINA specification, UL certification

Applications
Machine tools, Printing machines, Wind, Vehicle, Steel and heavy industries

Features and benefits
Available for rising and falling pressures from 0 to 100 bar in 0.5-bar increments, Easy to install into a lubrication line, Pivoted, four-digit, digital display, Can operate in switching point, hysteresis and window function modes, Programmming lock to protect against unauthorized adjustment of drive, Switching displayed using LEDs

Applications
Machine tools, Printing machines, Wind, Vehicle, Steel and heavy industries

Features and benefits
Integrated pressure sensor with thin-film strain gauge on stainless steel membrane, 3-digit, digital display, Independently adjustable switch-back hysteresis and switching point, Reverse polarity protection of the supply voltage, excess voltage, override and short-circuit protection are provided, Password protected, Directly installable via G 1/4 adapter into pressure line

Applications
Marine and off-shore applications, Steel and heavy industries, Wind turbines, Service vehicles

Features and benefits
IO-link incl. counter for operating hours, pressure peaks and inner temperature, Menu-guided adjustments via push buttons, Pre-adjustable hysteresis, Programmable parameters, password protected, Compact housing with 320° pivot

Applications
Marine and off-shore applications, Steel and heavy industries, Wind turbines, Service vehicles

Features and benefits
Menu-guided adjustments via 3 push buttons indicating status of outputs, Peak value storage, Adjustable hysteresis and absorption, Programmable parameters, Password protected, Reverse polarity and overvoltage protected; short-circuit proof

Applications
Machine tools, Printing machines, Wind, Vehicles, Steel and heavy industries

Features and benefits
Alphanumeric 4-digit 7 segment LED display, Microprocessor controlled, Self monitoring with error display, Scalable analog output, Programmable parameters via keypad, Adjustable password protection, Revers polarity and overvoltage protected, short-circuit proof max 60 VDC temporary, Rugged stainless steel construction, Vibration and shock-proof, longterm stability

Applications
Machine tools, Chemical technics, Wind, vehicle, steel and heavy industries, Automation

Features and benefits
Integrated pressure sensor with thin-film strain gauge on stainless steel membrane, 3-digit, digital display, Independently adjustable switch-back hysteresis and switching point, Reverse polarity protection of the supply voltage, excess voltage, override and short-circuit protection are provided, Password protected, Directly installable via G 1/4 adapter into pressure line

Applications
Marine and off-shore applications, Steel and heavy industries, Wind turbines, Service vehicles

Features and benefits
IO-link incl. counter for operating hours, pressure peaks and inner temperature, Menu-guided adjustments via push buttons, Pre-adjustable hysteresis, Programmable parameters, password protected, Compact housing with 320° pivot

Applications
Marine and off-shore applications, Steel and heavy industries, Wind turbines, Service vehicles
