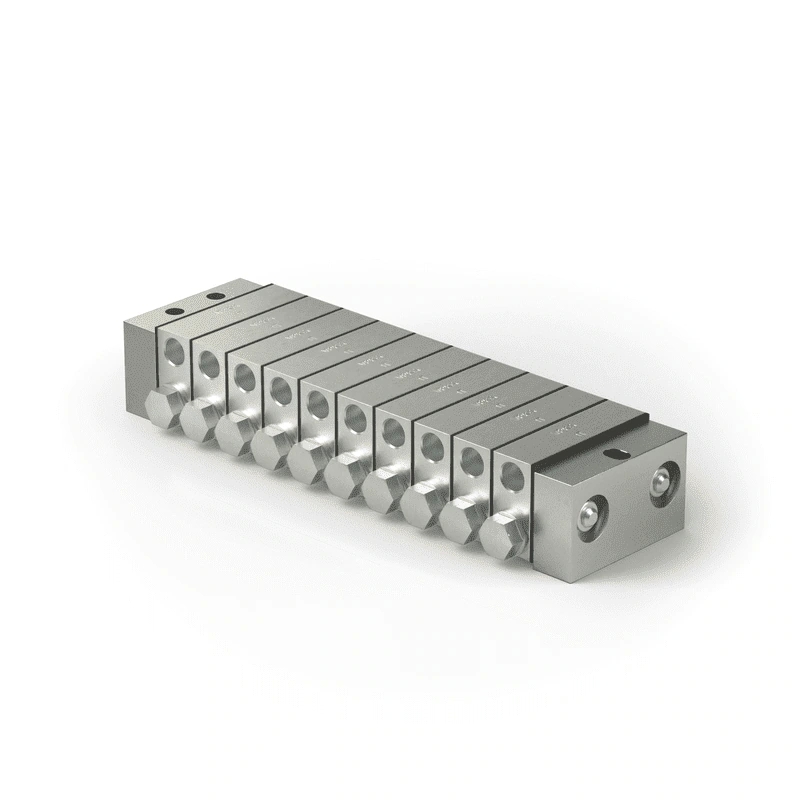

Sectional metering device

Features and benefits
Volumetric flow of up to 500 cm3/min; 30.5 in3/min, Universal use in continuous or intermittent operation, Metering sections with variable metering amount, Internal consolidation of outlets, Visual or electrical monitoring optional, Safe sealing concept with porting plates

Applications
Metal forming machines, Vehicles, Production machines of automotive industry, Packaging machines, Printing industry, Construction and mining, Farm machinery

Features and benefits
Volumetric flow of up to 1,0 l/min; 61 in3/min, Universal use in continuous or intermittent operation, Metering sections with variable metering amount, Internal and external consolidation of outlets, Visual or electrical monitoring optional, Ideal as main metering device, All outlets with built-in, non-return valves

Applications
Preferred master metering device, Metal forming machines, Vehicles, trucks, Construction and mining, Packaging machines, General industry, Farm machinery

Features and benefits
Easy servicing as outlets are located on baseplate, Flexible due to exchangeable metering segments, Visual or electrical monitoring possible, Dummy segments with no output available, Adjustable by consolidating outlets internally or externally

Applications
Automobile presses, Paper machines, Tunnel boring machines

Features and benefits
Easy servicing due to outlet location, Flexible with exchangeable metering segments, Visual or electrical monitoring available, Increased corrosion-resistant material offered, Adjustable output by consolidating outlets internally or externally

Applications
Automobile presses, Tunnel boring machines, Paper machines

Features and benefits
Easy servicing as outlets are located on baseplate, Flexible with exchangeable metering segments, Visual or electrical monitoring available, Increased corrosion-resistant material available, Dummy segments without output available, Adjustable output by consolidating outlets internally or externally, Main metering device in circulating oil systems

Applications
Automobile presses, Paper machines, Tunnel boring machines

Feature and benefits
Alternate outlet ports for performance indicators, Optional metering sections with visual cycle indicator, Optional by-pass metering segment for addition or deletion of lubrication points

Applications
Industrial machinery, Metal forming machines, Material handling machines

Feature and benefits
Alternate outlet ports for performance indicators, For mineral oil based or synthetic lubricants, Optional metering sections with visual cycle indicator, Optional by-pass metering segment for addition or deletion of lubrication points

Applications
Gas engines, Compressors, For applications with high system back pressure

Feature and benefits
Several sizes and outputs, Can be used as primary metering device in conjunction with UV type, Baseplate as one single piece

Applications
Metal cutting machines, Metal forming machines, Wood-working machines, Material handling machinery
