สายพาน มู่เล่ย์
OPTIBELT POWER TRANSMISSION

14M - belt width 55 mm

ชื่อรุ่น :

14M - belt width 55 mm

แบรนด์

Optibelt

รายละเอียด :

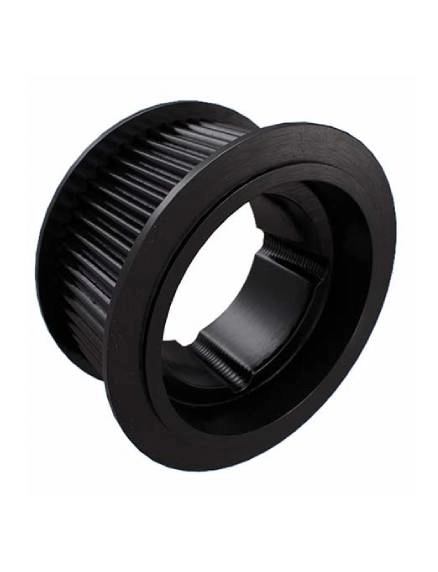

optibelt ZRS HTD ( 14M ) มู่เล่ย์สายพานไทม์มิ่ง สำหรับล็อคเพลาด้วยเทอเปอร์บู๊ธ - ขนาดเส้นผ่าศูนย์กลางของมู่เล่ย์ มีตั้งแต่ 124.78 - 962.57 มม. - ระยะ Pitch = 14 mm - สำหรับสายพานกว้าง = 55 mm
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
TB 28 14M 55
Model description

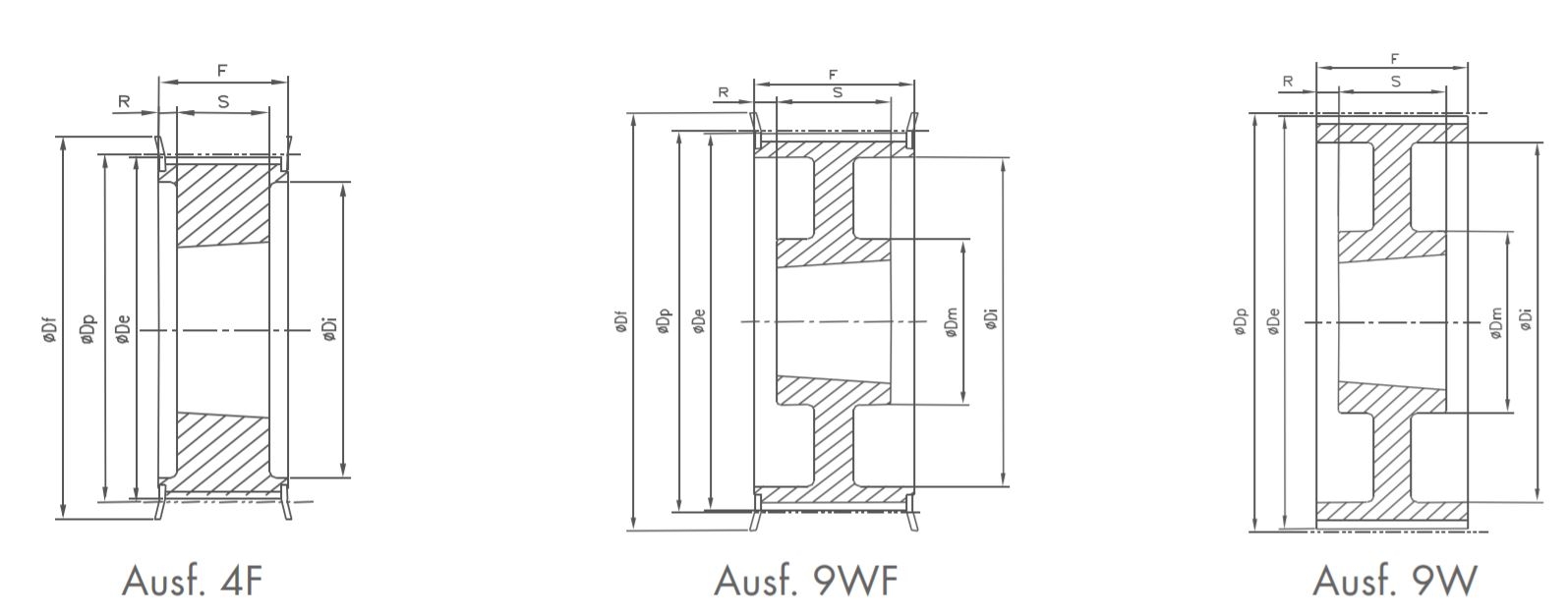

Number of teeth = 28 , Type = 4F Taper bushing = 2012 , Bore D2 = 14-50 mm DIMENSIONS : Dp = 124.78 mm , De = 122.12 mm, Df = 128 mm, F = 70 mm ,S = 32 mm
Price
Call
Model
TB 29 14M 55
Model description
Number of teeth = 29 , Type = 4F Taper bushing = 2517 , Bore D2 = 16-65 mm DIMENSIONS : Dp = 129.23 mm , De = 126.57 mm, Df = 138 mm, F = 70 mm ,S = 32 mm
Price
Call
Model
TB 30 14M 55
Model description
Number of teeth = 30 , Type = 4F Taper bushing = 2517 , Bore D2 = 16-65 mm DIMENSIONS : Dp = 133.99 mm , De = 130.99 mm, Df = 138 mm, F = 70 mm ,S = 45 mm
Price
Call
Model
TB 32 14M 55
Model description
Number of teeth = 32 , Type = 4F Taper bushing = 2517 , Bore D2 = 16-65 mm DIMENSIONS : Dp = 142.60 mm , De = 139.88 mm, Df = 154 mm, F = 70 mm ,S = 45 mm
Price
Call
Model
TB 34 14M 55
Model description
Number of teeth = 34 , Type = 4F Taper bushing = 2517 , Bore D2 = 16-65 mm DIMENSIONS : Dp = 151.52 mm , De = 148.79 mm, Df = 160 mm, F = 70 mm ,S = 45 mm
Price
Call
Model
TB 36 14M 55
Model description
Number of teeth = 36 , Type = 4F Taper bushing = 2517 , Bore D2 = 16-65 mm DIMENSIONS : Dp = 160.43 mm , De = 157.68 mm, Df = 168 mm, F = 70 mm ,S = 45 mm
Price
Call
Model
TB 38 14M 55
Model description
Number of teeth = 38 , Type = 4F Taper bushing = 2517 , Bore D2 = 16-65 mm DIMENSIONS : Dp = 169.34 mm , De = 166.60 mm, Df = 183 mm, F = 70 mm ,S = 45 mm
Price
Call
Model
TB 40 14M 55
Model description
Number of teeth = 40 , Type = 4F Taper bushing = 2517 , Bore D2 = 16-65 mm DIMENSIONS : Dp = 178.25 mm , De = 175.49 mm, Df = 188 mm, F = 70 mm ,S = 45 mm
Price
Call
Model
TB 44 14M 55
Model description
Number of teeth = 44 , Type = 4F Taper bushing = 3020 , Bore D2 = 25-75 mm DIMENSIONS : Dp = 196.08 mm , De = 193.28 mm, Df = 211 mm, F = 70 mm ,S = 51 mm
Price
Call
Model
TB 48 14M 55
Model description
Number of teeth = 48 , Type = 4F Taper bushing = 3020 , Bore D2 = 25-75 mm DIMENSIONS : Dp = 213.90 mm , De = 211.11 mm, Df = 226 mm, F = 70 mm ,S = 51 mm
Price
Call
Model
TB 56 14M 55
Model description
Number of teeth = 56 , Type = 9WF Taper bushing = 3020 , Bore D2 = 25-75 mm DIMENSIONS : Dp = 249.55 mm , De = 246.76 mm, Df = 256 mm, F = 70 mm ,S = 51 mm
Price
Call
Model
TB 64 14M 55
Model description
Number of teeth = 64 , Type = 9WF Taper bushing = 3020 , Bore D2 = 25-75 mm DIMENSIONS : Dp = 285.21 mm , De = 282.41 mm, Df = 296 mm, F = 70 mm ,S = 51 mm
Price
Call
Model
TB 72 14M 55
Model description
Number of teeth = 72 , Type = 9W Taper bushing = 3020 , Bore D2 = 25-75 mm DIMENSIONS : Dp = 320.86 mm , De = 318.06 mm, Df = - mm, F = 70 mm ,S = 51 mm
Price
Call
Model
TB 80 14M 55
Model description
Number of teeth = 80 , Type = 9A Taper bushing = 3020 , Bore D2 = 25-75 mm DIMENSIONS : Dp = 356.51 mm , De = 353.71 mm, Df = - mm, F = 70 mm ,S = 51 mm
Price
Call
Model
TB 90 14M 55
Model description
Number of teeth = 90 , Type = 9A Taper bushing = 3020 , Bore D2 = 25-75 mm DIMENSIONS : Dp = 401.07 mm , De = 398.28 mm, Df = - mm, F = 70 mm ,S = 51 mm
Price
Call
Model
TB 112 14M 55
Model description
Number of teeth = 112 , Type = 9A Taper bushing = 3020 , Bore D2 = 25-75 mm DIMENSIONS : Dp = 499.11 mm , De = 496.32 mm, Df = - mm, F = 70 mm ,S = 51 mm
Price
Call
Model
TB 144 14M 55
Model description
Number of teeth = 114 , Type = 9A Taper bushing = 3020 , Bore D2 = 25-75 mm DIMENSIONS : Dp = 641.71 mm , De = 638.92 mm, Df = - mm, F = 70 mm ,S = 51 mm
Price
Call
Model
TB 168 14M 55
Model description
Number of teeth = 168 , Type = 9A Taper bushing = 3020 , Bore D2 = 25-75 mm DIMENSIONS : Dp = 748.66 mm , De = 745.87 mm, Df = - mm, F = 70 mm ,S = 51 mm
Price
Call
Model
TB 192 14M 55
Model description
Number of teeth = 3020 , Type = 9A Taper bushing = 3020 , Bore D2 = 25-75 mm DIMENSIONS : Dp = 855.62 mm , De = 852.82 mm, Df = - mm, F = 70 mm ,S = 51 mm
Price
Call
Model
TB 216 14M 55
Model description
Number of teeth = 216 , Type = 7A Taper bushing = 3535 , Bore D2 = 35-90 mm DIMENSIONS : Dp = 962.57 mm , De = 959.76 mm, Df = - mm, F = 70 mm ,S = 51 mm
Price
Call
