OPTIBELT POWER TRANSMISSION

3M - belt width 6 mm

ชื่อรุ่น :

3M - belt width 6 mm

แบรนด์

Optibelt

รายละเอียด :

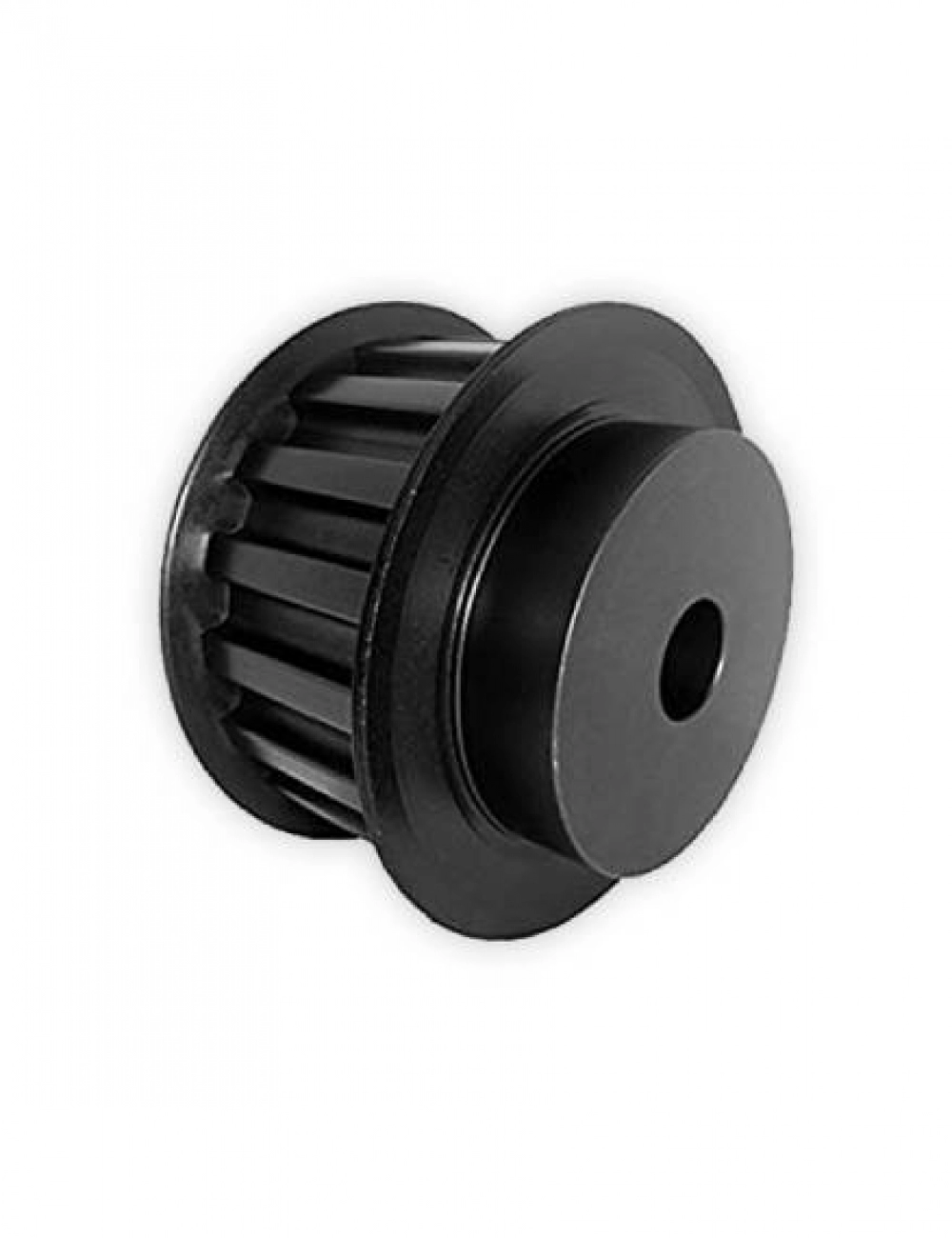

optibelt ZRS HTD ( 3M ) มู่เล่ย์สายพานไทม์มิ่ง สำหรับรูเพลามาตราฐาน - ขนาดเส้นผ่าศูนย์กลางของมู่เล่ย์ มีตั้งแต่ 9.55 - 68.75 มม. - ระยะ Pitch = 3 mm - สำหรับสายพานกว้าง = 6 mm

ติดต่อเราได้ที่ :

Model

Model description

Price

Model
10 3M 6
Model description

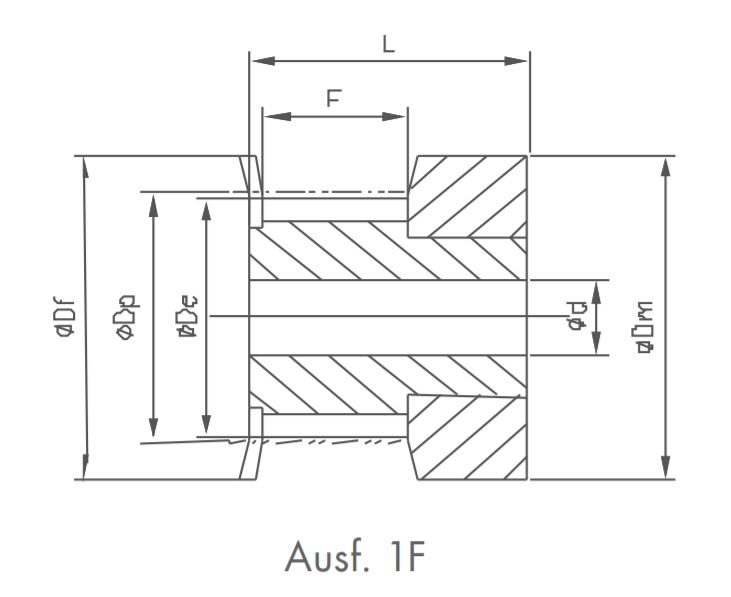

Number of teeth = 10 , Type = 1F Pilot bore = - mm , Bore max. = 3 mm DIMENSIONS : Dp = 9.55 mm , De = 8.79 mm, Df = 13 mm, F = 7.2 mm ,L = 14.5 mm
Price
Call
Model
12 3M 6
Model description
Number of teeth = 12 , Type = 1F Pilot bore = - mm , Bore max. = 5 mm DIMENSIONS : Dp = 11.46 mm , De = 10.70 mm, Df = 15 mm, F = 7.2 mm ,L = 14.5 mm
Price
Call
Model
14 3M 6
Model description
Number of teeth = 14 , Type = 1F Pilot bore = - mm , Bore max. = 6 mm DIMENSIONS : Dp = 13.37 mm , De = 12.61 mm, Df = 16 mm, F = 7.2 mm ,L = 14.5 mm
Price
Call
Model
15 3M 6
Model description
Number of teeth = 15 , Type = 1F Pilot bore = - mm , Bore max. = 6 mm DIMENSIONS : Dp = 14.32 mm , De = 13.56 mm, Df = 17.5 mm, F = 7.2 mm ,L = 14.5 mm
Price
Call
Model
16 3M 6
Model description

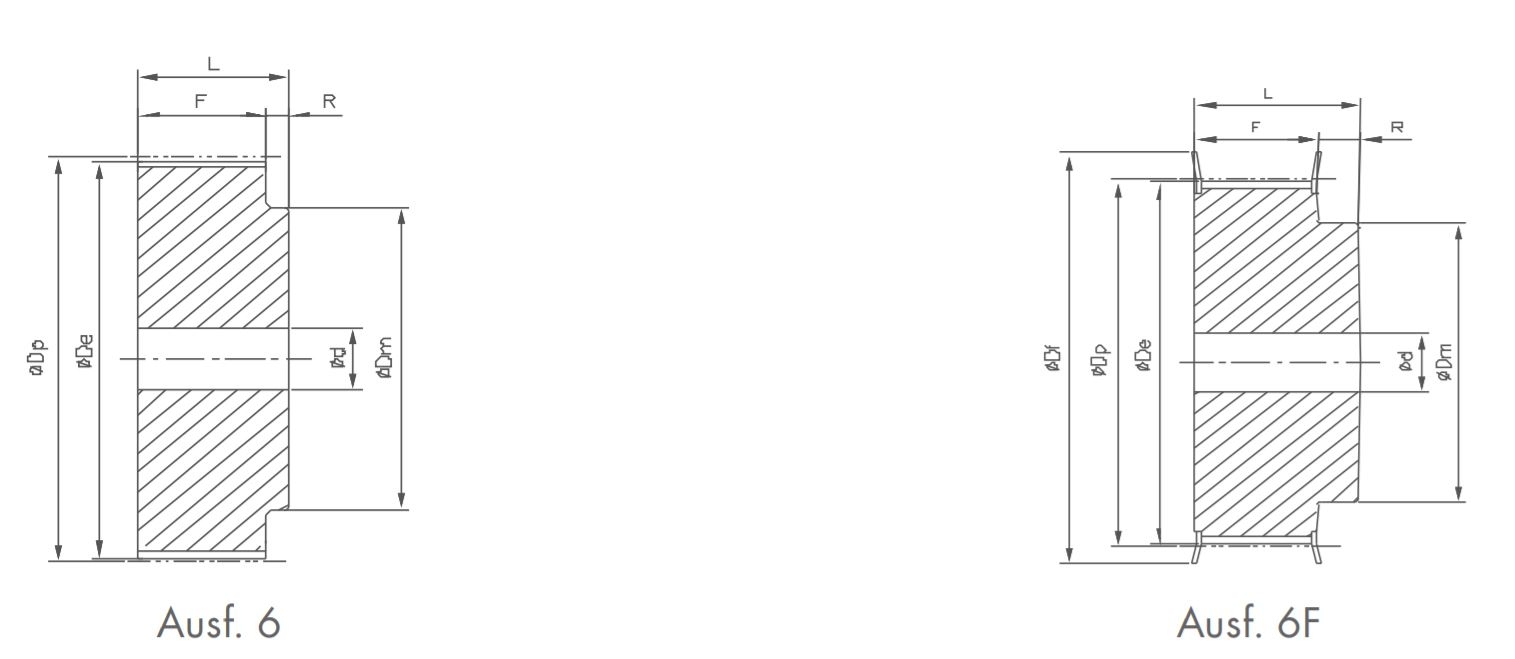

Number of teeth = 16 , Type = 6F Pilot bore = - mm , Bore max. = 7 mm DIMENSIONS : Dp = 15.28 mm , De = 14.52 mm, Df = 17.5 mm, F = 9.8 mm ,L = 17.5 mm
Price
Call
Model
18 3M 6
Model description
Number of teeth = 18 , Type = 6F Pilot bore = - mm , Bore max. = 8 mm DIMENSIONS : Dp = 17.19 mm , De = 16.43 mm, Df = 20 mm, F = 9.8 mm ,L = 17.5 mm
Price
Call
Model
20 3M 6
Model description
Number of teeth = 20 , Type = 6E Pilot bore = - mm , Bore max. = 9 mm DIMENSIONS : Dp = 19.10 mm , De = 18.34 mm, Df = 23 mm, F = 9.8 mm ,L = 17.5 mm
Price
Call
Model
21 3M 6
Model description
Number of teeth = 21 , Type = 6E Pilot bore = - mm , Bore max. = 9 mm DIMENSIONS : Dp = 20.05 mm , De = 19.29 mm, Df = 25 mm, F =9.8 mm ,L = 17.5 mm
Price
Call
Model
22 3M 6
Model description
Number of teeth = 22 , Type = 6F Pilot bore = - mm , Bore max. = 9 mm DIMENSIONS : Dp = 21.01 mm , De = 20.25 mm, Df = 25 mm, F = 9.8 mm ,L = 17.5 mm
Price
Call
Model
24 3M 6
Model description
Number of teeth = 24 , Type = 6F Pilot bore = - mm , Bore max. = 9 mm DIMENSIONS : Dp = 22.92 mm , De = 22.16 mm, Df = 25 mm, F = 9.8 mm ,L = 17.5 mm
Price
Call
Model
26 3M 6
Model description
Number of teeth = 26 , Type = 6F Pilot bore = - mm , Bore max. = 11 mm DIMENSIONS : Dp = 24.83 mm , De = 24.07 mm, Df = 28 mm, F = 9.8 mm ,L = 17.5 mm
Price
Call
Model
28 3M 6
Model description
Number of teeth = 28 , Type = 6F Pilot bore = - mm , Bore max. = 12 mm DIMENSIONS : Dp = 26.74 mm , De = 25.98 mm, Df = 32 mm, F = 9.8 mm ,L = 17.5 mm
Price
Call
Model
30 3M 6
Model description
Number of teeth = 30 , Type = 6F Pilot bore = - mm , Bore max. = 14 mm DIMENSIONS : Dp = 28.65 mm , De = 27.89 mm, Df = 32 mm, F = 9.8 mm ,L = 17.5 mm
Price
Call
Model
32 3M 6
Model description
Number of teeth = 32 , Type = 6F Pilot bore = - mm , Bore max. = 15 mm DIMENSIONS : Dp = 30.56 mm , De = 29.80 mm, Df = 36 mm, F = 9.8 mm ,L = 17.5 mm
Price
Call
Model
36 3M 6
Model description
Number of teeth = 36 , Type = 6F Pilot bore = - mm , Bore max. = 16 mm DIMENSIONS : Dp = 34.38 mm , De = 33.62 mm, Df = 39 mm, F = 10.3 mm ,L = 18 mm
Price
Call
Model
40 3M 6
Model description
Number of teeth = 40 , Type = 6F Pilot bore = - mm , Bore max. = 18 mm DIMENSIONS : Dp = 38.20 mm , De = 37.44 mm, Df = 42 mm, F = 10.3 mm ,L = 18 mm
Price
Call
Model
44 3M 6
Model description
Number of teeth = 44 , Type = 6F Pilot bore = - mm , Bore max. = 20 mm DIMENSIONS : Dp = 42.02 mm , De = 41.26 mm, Df = 48 mm, F = 10.3 mm ,L = 18 mm
Price
Call
Model
48 3M 6
Model description
Number of teeth = 48 , Type = 6 Pilot bore = 8 mm , Bore max. = 20 mm DIMENSIONS : Dp = 45.84 mm , De = 45.08 mm, Df = - mm, F = 10.3 mm ,L = 18.6 mm
Price
Call
Model
60 3M 6
Model description
Number of teeth = 60 , Type = 6 Pilot bore = 8 mm , Bore max. = 20 mm DIMENSIONS : Dp = 57.30 mm , De = 56.54 mm, Df = - mm, F = 10.3 mm ,L = 18.6 mm
Price
Call
Model
72 3M 6
Model description
Number of teeth = 72 , Type = 6 Pilot bore = 8 mm , Bore max. = mm DIMENSIONS : Dp = 68.75 mm , De = 67.99 mm, Df = - mm, F = 10.3 mm ,L = 18.6 mm
Price
Call
