PRODUCT
![]()
ชื่อรุ่น :
XH 300
แบรนด์
Optibelt
รายละเอียด :

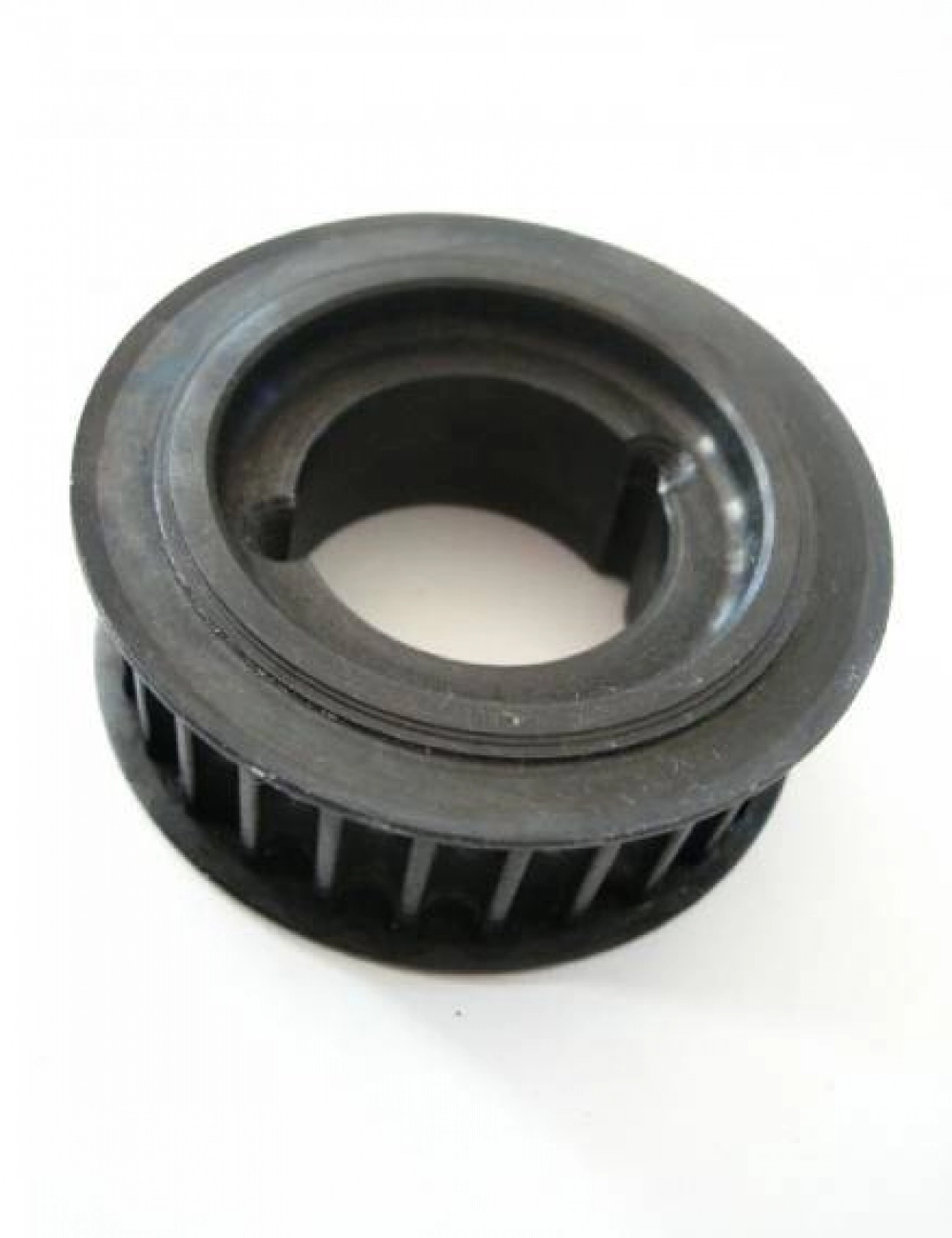

optibelt ZRS ( XH 300 ) มู่เล่ย์สายพานไทม์มิ่ง สำหรับล็อคด้วยเทเปอร์บู๊ธ
- ขนาดเส้นผ่าศูนย์กลางของมู่เล่ย์ มีตั้งแต่ 127.34 - 339.57 มม.
- ระยะ Pitch 22.225 mm
- ความกว้างของสายพาน = 300 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
TB 18 XH 300
Model description
Number of teeth = 18 , Type = 5F
Taper bushing = 2517 , Bore d2 = 16-65 mm
DIMENSIONS : Dp = 127.34 mm , De = 124.55 mm, Df = 140 mm, F = 90 mm, S = 45 mm,R = 45 mm, Dm = - mm
Price
Model
TB 20 XH 300
Model description
Number of teeth = 20 , Type = 5F
Taper bushing = 2517 , Bore d2 = 16-65 mm
DIMENSIONS : Dp = 141.49 mm , De = 138.69 mm, Df = 155 mm, F = 90 mm, S = 45 mm,R = 45 mm, Dm = - mm
Price
Model
TB 22 XH 300
Model description
Number of teeth = 22 , Type = 5F
Taper bushing = 2517 , Bore d2 = 16-65 mm
DIMENSIONS : Dp = 155.64 mm , De = 152.84 mm, Df = 170 mm, F = 90 mm, S = 45 mm,R = 45 mm, Dm = - mm
Price
Model
TB 24 XH 300
Model description
Number of teeth = 24 , Type = 5F
Taper bushing = 2517 , Bore d2 = 16-65 mm
DIMENSIONS : Dp = 169.79 mm , De = 166.99 mm, Df = 184 mm, F = 90 mm, S = 45 mm,R = 45 mm, Dm = - mm
Price
Model
TB 26 XH 300
Model description
Number of teeth = 26 , Type = 5F
Taper bushing = 2517 , Bore d2 = 16-65 mm
DIMENSIONS : Dp = 183.94 mm , De = 181.14 mm, Df = 198 mm, F = 90 mm, S = 45 mm,R = 45 mm, Dm = - mm
Price
Model
TB 28 XH 300
Model description
Number of teeth = 28 , Type = 5F
Taper bushing = 3020 , Bore d2 = 25-75 mm
DIMENSIONS : Dp = 198.08 mm , De = 195.29 mm, Df = 212 mm, F = 90 mm, S = 51 mm,R = 39 mm, Dm = - mm
Price
Model
TB 30 XH 300
Model description
Number of teeth = 30 , Type = 5F
Taper bushing = 3020 , Bore d2 = 25-75 mm
DIMENSIONS : Dp = 212.23 mm , De = 209.44 mm, Df = 227 mm, F = 90 mm, S = 51 mm,R = 39 mm, Dm = - mm
Price
Model
TB 32 XH 300
Model description
Number of teeth = 32 , Type = 5F
Taper bushing = 3020 , Bore d2 = 25-75 mm
DIMENSIONS : Dp = 226.38 mm , De = 223.59 mm, Df = 240 mm, F = 90 mm, S = 51 mm,R = 39 mm, Dm = - mm
Price
Model
TB 40 XH 300
Model description

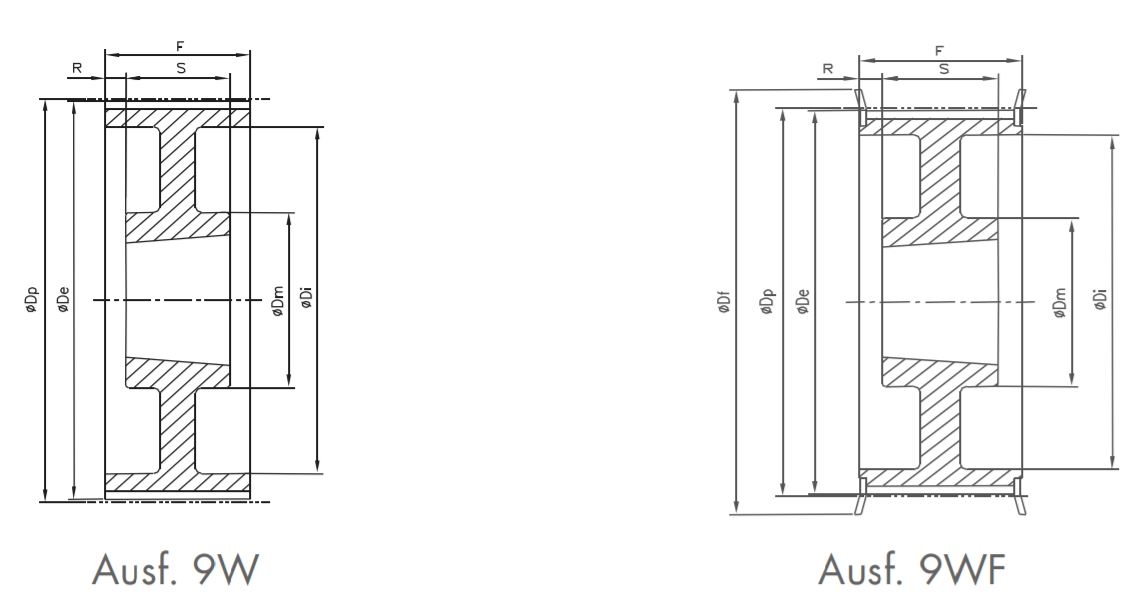

Number of teeth = 40 , Type = 9WF
Taper bushing = 3020 , Bore d2 = 25-75 mm
DIMENSIONS : Dp = 282.98 mm , De = 280.18 mm, Df = 297 mm, F = 90 mm, S = 51 mm,R = 19.5 mm, Dm = 160 mm
Price
Model
TB 48 XH 300
Model description
Number of teeth = 48 , Type = 9A
Taper bushing = 3020 , Bore d2 = 25-75 mm
DIMENSIONS : Dp = 339.57 mm , De = 336.78 mm, Df = - mm, F = 90 mm, S = 51 mm,R = 19.5 mm, Dm = 160 mm
Price
