หมวดสินค้า

สายพาน มู่เล่ย์
OPTIBELT POWER TRANSMISSION

L 050

ชื่อรุ่น :

L 050

แบรนด์

Optibelt

รายละเอียด :

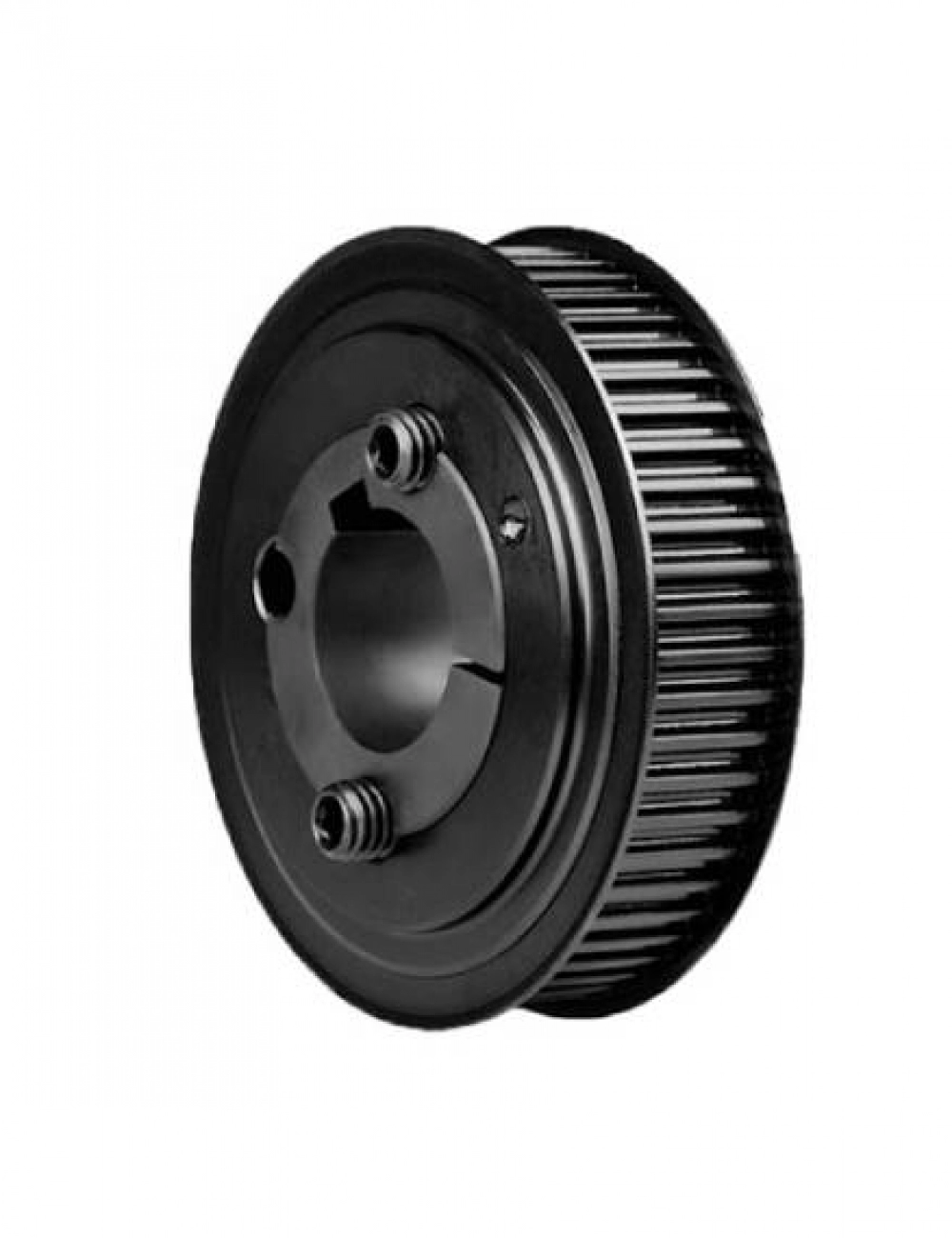

optibelt ZRS ( L 050 ) มู่เล่ย์สายพานไทม์มิ่ง สำหรับล็อคด้วยเทเปอร์บู๊ธ - ขนาดเส้นผ่าศูนย์กลางของมู่เล่ย์ มีตั้งแต่ 54.57 - 363.83 มม. - ระยะ Pitch 9.525 mm - ความกว้างของสายพาน = 050 mm
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
TB 18 L 050
Model description

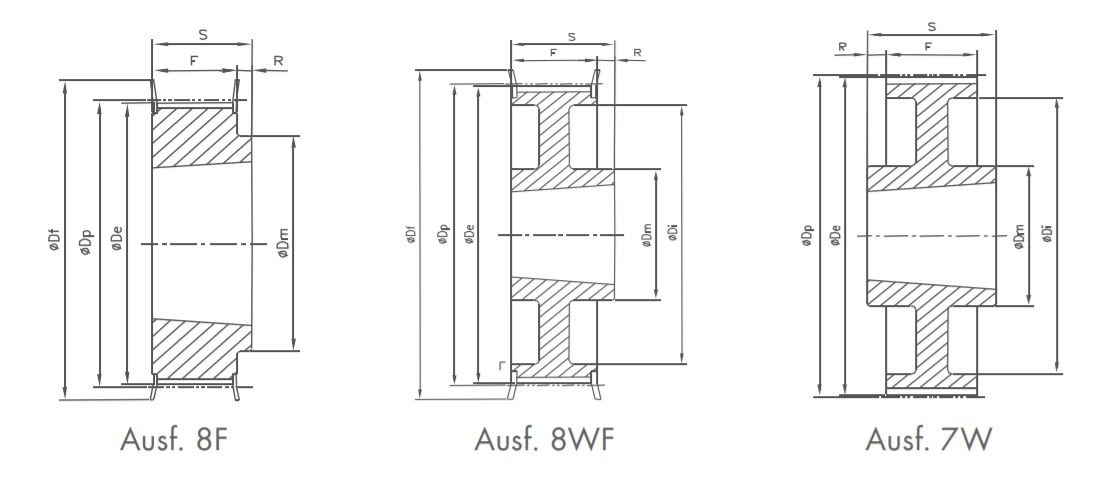

Number of teeth = 18 , Type = 8F Taper bushing = 1108 , Bore d2 = 10-28 mm DIMENSIONS : Dp = 54.57 mm , De = 53.81 mm, Df = 60 mm, F = 19 mm, S = 22 mm,R = 3 mm, Dm =40 mm
Price
Call
Model
TB 19 L 050
Model description
Number of teeth = 19 , Type = 8F Taper bushing = 1108 , Bore d2 = 10-28 mm DIMENSIONS : Dp = 57.61 mm , De = 56.84 mm, Df = 64 mm, F = 19 mm, S = 22 mm,R = 3 mm, Dm = 40 mm
Price
Call
Model
TB 20 L 050
Model description
Number of teeth = 20 , Type = 8F Taper bushing = 1108 , Bore d2 = 10-28 mm DIMENSIONS : Dp = 60.64 mm , De = 59.88 mm, Df = 66.5 mm, F = 19 mm, S = 22 mm,R = 3 mm, Dm = 40 mm
Price
Call
Model
TB 21 L 050
Model description
Number of teeth = 21 , Type = 8F Taper bushing = 1108 , Bore d2 = 10-28 mm DIMENSIONS : Dp = 63.67 mm , De = 62.91 mm, Df = 70 mm, F = 19 mm, S = 22 mm,R = 3 mm, Dm = 45 mm
Price
Call
Model
TB 22 L 050
Model description
Number of teeth = 22 , Type = 8F Taper bushing = 1108 , Bore d2 = 10-28 mm DIMENSIONS : Dp = 66.70 mm , De = 65.94 mm, Df = 75 mm, F = 19 mm, S = 22 mm,R = 3 mm, Dm = 45 mm
Price
Call
Model
TB 23 L 050
Model description
Number of teeth = 23 , Type = 8F Taper bushing = 1108 , Bore d2 = 10-28 mm DIMENSIONS : Dp = 69.73 mm , De = 68.97 mm, Df = 79 mm, F = 19 mm, S = 22 mm,R = 3 mm, Dm = 55 mm
Price
Call
Model
TB 24 L 050
Model description
Number of teeth = 24 , Type = 8F Taper bushing = 1108 , Bore d2 = 10-28 mm DIMENSIONS : Dp = 72.77 mm , De = 72.00 mm, Df = 79 mm, F = 19 mm, S = 22 mm,R = 3 mm, Dm = 55 mm
Price
Call
Model
TB 25 L 050
Model description
Number of teeth = 25 , Type = 8F Taper bushing = 1108 , Bore d2 = 10-28 mm DIMENSIONS : Dp = 75.80 mm , De = 75.04 mm, Df = 82.5 mm, F = 19 mm, S = 22 mm,R = 3 mm, Dm = 58 mm
Price
Call
Model
TB 26 L 050
Model description
Number of teeth = 26 , Type = 8F Taper bushing = 1108 , Bore d2 = 10-28 mm DIMENSIONS : Dp = 78.83 mm , De = 78.07 mm, Df = 86 mm, F = 19 mm, S = 22 mm,R = 3 mm, Dm = 58 mm
Price
Call
Model
TB 27 L 050
Model description
Number of teeth = 27 , Type = 8F Taper bushing = 1108 , Bore d2 = 10-28 mm DIMENSIONS : Dp = 81.86 mm , De = 81.10 mm, Df = 86 mm, F = 19 mm, S = 22 mm,R = 3 mm, Dm = 58 mm
Price
Call
Model
TB 28 L 050
Model description
Number of teeth = 28 , Type = 8F Taper bushing = 1108 , Bore d2 = 10-28 mm DIMENSIONS : Dp = 84.89 mm , De = 84.13 mm, Df = 91 mm, F = 19 mm, S = 22 mm,R = 3 mm, Dm = 58 mm
Price
Call
Model
TB 30 L 050
Model description
Number of teeth = 30 , Type = 8F Taper bushing = 1108 , Bore d2 = 10-28 mm DIMENSIONS : Dp = 90.96 mm , De = 90.20 mm, Df = 97 mm, F = 19 mm, S = 22 mm,R = 3 mm, Dm = 70 mm
Price
Call
Model
TB 32 L 050
Model description
Number of teeth = 32 , Type = 8F Taper bushing = 1108 , Bore d2 = 10-28 mm DIMENSIONS : Dp = 97.02 mm , De = 96.28 mm, Df = 102 mm, F = 19 mm, S = 22 mm,R = 3 mm, Dm = 70 mm
Price
Call
Model
TB 36 L 050
Model description
Number of teeth = 36 , Type = 8F Taper bushing = 1108 , Bore d2 = 10-28 mm DIMENSIONS : Dp = 109.15 mm , De = 108.39 mm, Df = 115 mm, F = 19 mm, S = 22 mm,R = 3 mm, Dm = 70 mm
Price
Call
Model
TB 40 L 050
Model description
Number of teeth = 40 , Type = 8F Taper bushing = 1610 , Bore d2 = 14-42 mm DIMENSIONS : Dp = 121.28 mm , De = 120.51 mm, Df = 128 mm, F = 19 mm, S = 25 mm,R = 6 mm, Dm = 70 mm
Price
Call
Model
TB 48 L 050
Model description
Number of teeth = 48 , Type = 8WF Taper bushing = 1610 , Bore d2 = 14-42 mm DIMENSIONS : Dp = 145.53 mm , De = 144.77 mm, Df = 150 mm, F = 19 mm, S = 25 mm,R = 6 mm, Dm = 70 mm
Price
Call
Model
TB 60 L 050
Model description
Number of teeth = 60 , Type = 7W Taper bushing = 1610 , Bore d2 = 14-42 mm DIMENSIONS : Dp = 181.91 mm , De = 181.15 mm, Df = - mm, F = 19 mm, S = 25 mm,R = 3 mm, Dm = 70 mm
Price
Call
Model
TB 72 L 050
Model description
Number of teeth = 72 , Type = 7A Taper bushing = 1610 , Bore d2 = 14-42 mm DIMENSIONS : Dp = 218.30 mm , De = 217.53 mm, Df = - mm, F = 19 mm, S = 25 mm,R = 3 mm, Dm = 75 mm
Price
Call
Model
TB 84 L 050
Model description
Number of teeth = 84 , Type = 7A Taper bushing = 1610 , Bore d2 = 14-42 mm DIMENSIONS : Dp = 254.68 mm , De = 253.90 mm, Df = - mm, F = 19 mm, S = 25 mm,R = 3 mm, Dm = 75 mm
Price
Call
Model
TB 96 L 050
Model description
Number of teeth = 96 , Type = 7A Taper bushing = 2012 , Bore d2 = 14-50 mm DIMENSIONS : Dp = 291.06 mm , De = 290.30 mm, Df = - mm, F = 19 mm, S = 32 mm,R = 6.5 mm, Dm = 75 mm
Price
Call
Model
TB 120 L 050
Model description
Number of teeth = 120 , Type = 7A Taper bushing = 342 , Bore d2 = 2012 mm DIMENSIONS : Dp = 363.83 mm , De = 363.07 mm, Df = - mm, F = 19 mm, S = 32 mm,R = 6.5 mm, Dm = 75 mm
Price
Call
