H 300

ชื่อรุ่น :

H 300

แบรนด์

Optibelt

รายละเอียด :

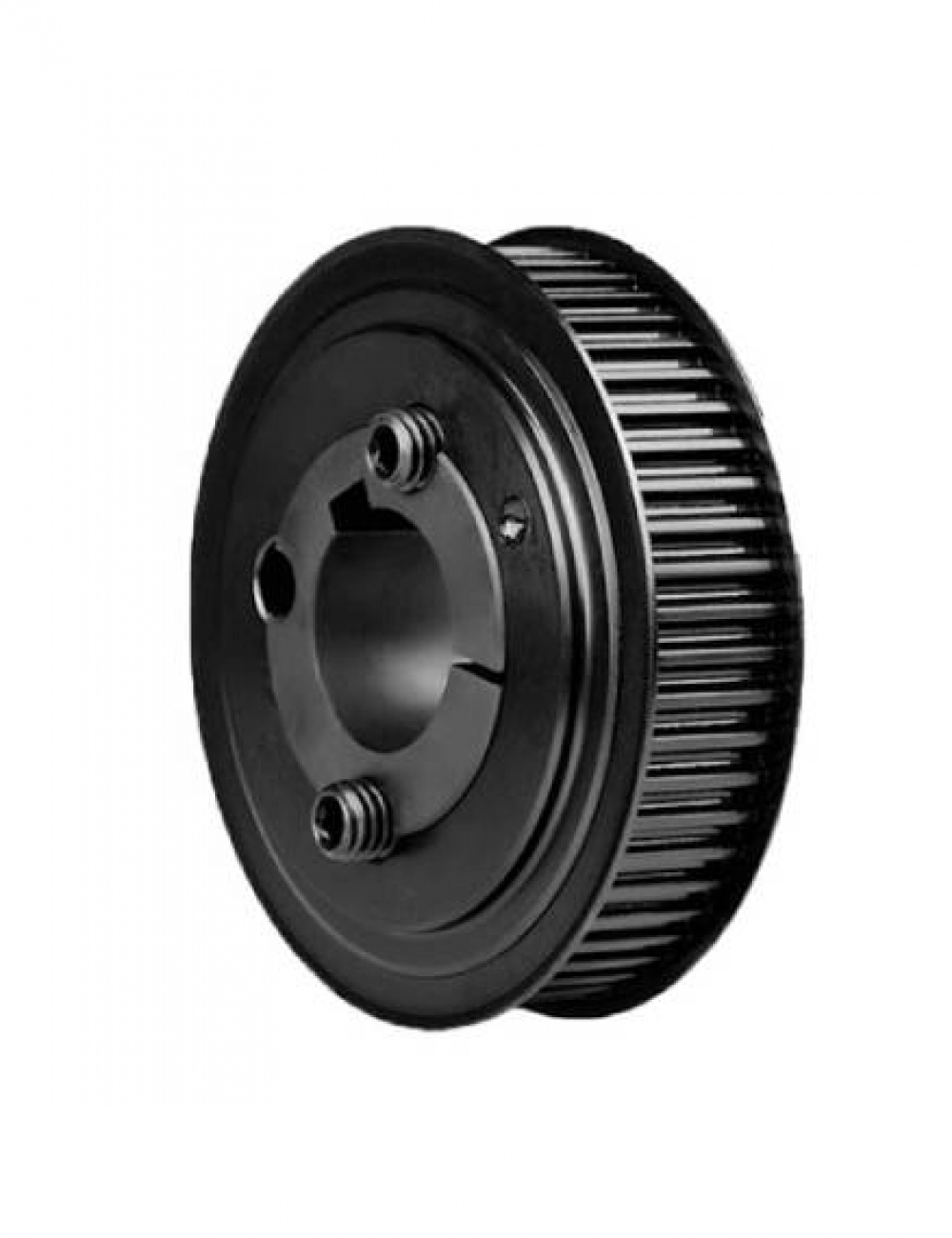

optibelt ZRS ( H 300 ) มู่เล่ย์สายพานไทม์มิ่ง สำหรับล็อคด้วยเทเปอร์บู๊ธ - ขนาดเส้นผ่าศูนย์กลางของมู่เล่ย์ มีตั้งแต่ 80.85 - 485.10 มม. - ระยะ Pitch 12.7 mm - ความกว้างของสายพาน = 300 mm
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
TB 20 H 300
Model description

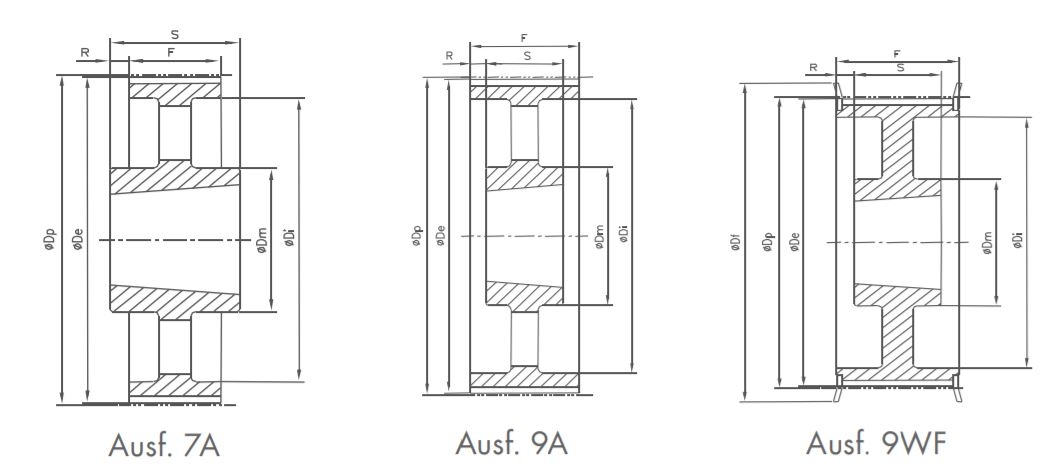

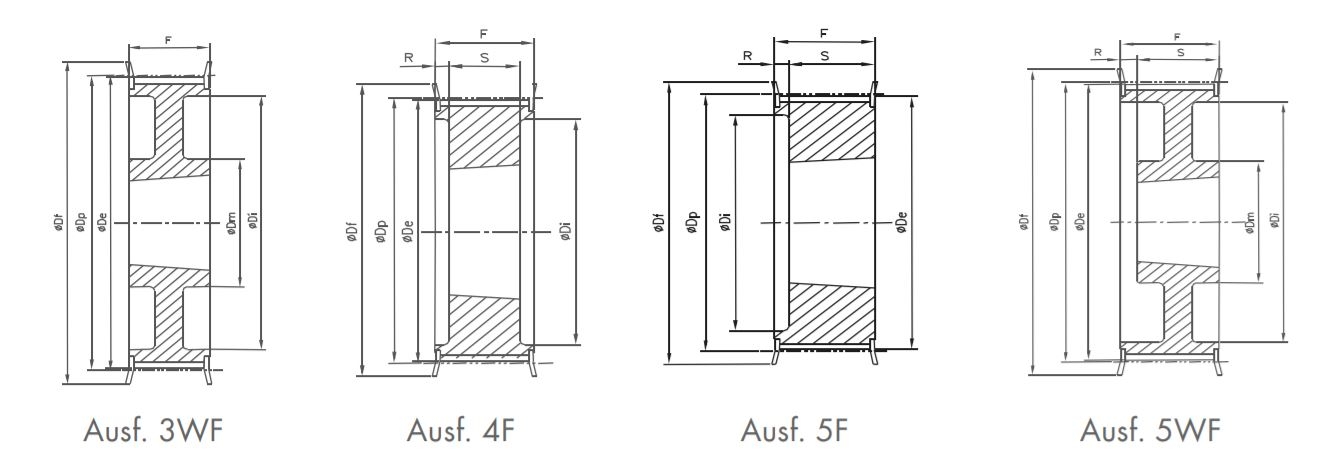

Number of teeth = 20 , Type = 4F Taper bushing = 1615 , Bore d2 = 14-42 mm DIMENSIONS : Dp = 80.85 mm , De = 79.48 mm, Df = 87 mm, F = 84 mm, S = 38 mm,R = 23 mm, Dm = - mm
Price
Call
Model
TB 21 H 300
Model description
Number of teeth = 21 , Type = 4F Taper bushing = 1615 , Bore d2 = 14-42 mm DIMENSIONS : Dp = 84.89 mm , De = 83.52 mm, Df = 91 mm, F = 84 mm, S = 38 mm,R = 23 mm, Dm = - mm
Price
Call
Model
TB 22 H 300
Model description
Number of teeth = 22 , Type = 4F Taper bushing = 1615 , Bore d2 = 14-42 mm DIMENSIONS : Dp = 88.94 mm , De = 87.56 mm, Df = 94 mm, F = 84 mm, S = 38 mm,R = 23 mm, Dm = - mm
Price
Call
Model
TB 23 H 300
Model description
Number of teeth = 23 , Type = 4F Taper bushing = 1615 , Bore d2 = 14-42 mm DIMENSIONS : Dp = 92.98 mm , De = 91.61 mm, Df = 97 mm, F = 84 mm, S = 38 mm,R = 23 mm, Dm = - mm
Price
Call
Model
TB 24 H 300
Model description
Number of teeth = 24 , Type = 4F Taper bushing = 1615 , Bore d2 = 14-42 mm DIMENSIONS : Dp = 97.02 mm , De = 95.65 mm, Df = 102 mm, F = 84 mm, S = 38 mm,R = 23 mm, Dm = - mm
Price
Call
Model
TB 25 H 300
Model description
Number of teeth = 25 , Type = 4F Taper bushing = 1615 , Bore d2 = 14-42 mm DIMENSIONS : Dp = 101.06 mm , De = 99.69 mm, Df = 106 mm, F = 84 mm, S = 38 mm,R = 23 mm, Dm = - mm
Price
Call
Model
TB 26 H 300
Model description
Number of teeth = 26 , Type = 4F Taper bushing = 1615 , Bore d2 = 14-42 mm DIMENSIONS : Dp = 105.11 mm , De = 103.73 mm, Df = 112 mm, F = 84 mm, S = 38 mm,R = 23 mm, Dm = - mm
Price
Call
Model
TB 27 H 300
Model description
Number of teeth = 27 , Type = 4F Taper bushing = 2012 , Bore d2 = 14-50 mm DIMENSIONS : Dp = 109.15 mm , De = 107.78 mm, Df = 115 mm, F = 84 mm, S = 38 mm,R = 26 mm, Dm = - mm
Price
Call
Model
TB 28 H 300
Model description
Number of teeth = 28 , Type = 4F Taper bushing = 2012 , Bore d2 = 14-50 mm DIMENSIONS : Dp = 113.19 mm , De = 111.82 mm, Df = 120 mm, F = 84 mm, S = 32 mm,R = 26 mm, Dm = - mm
Price
Call
Model
TB 30 H 300
Model description
Number of teeth = 30 , Type = 4F Taper bushing = 2012 , Bore d2 = 14-50 mm DIMENSIONS : Dp = 121.28 mm , De = 119.90 mm, Df = 128 mm, F = 84 mm, S = 32 mm,R = 26 mm, Dm = - mm
Price
Call
Model
TB 32 H 300
Model description
Number of teeth = 32 , Type = 4F Taper bushing = 2517 , Bore d2 = 16-65 mm DIMENSIONS : Dp = 129.36 mm , De = 127.99 mm, Df = 135 mm, F = 84 mm, S = 45 mm,R = 19.5 mm, Dm = - mm
Price
Call
Model
TB 36 H 300
Model description
Number of teeth = 36 , Type = 4F Taper bushing = 2517 , Bore d2 = 16-65 mm DIMENSIONS : Dp = 145.53 mm , De = 144.16 mm, Df = 150 mm, F = 84 mm, S = 45 mm,R = 19.5 mm, Dm = - mm
Price
Call
Model
TB 40 H 300
Model description
Number of teeth = 40 , Type = 4F Taper bushing = 2517 , Bore d2 = 16-65 mm DIMENSIONS : Dp = 161.70 mm , De = 160.33 mm, Df = 168 mm, F = 84 mm, S = 45 mm,R = 19.5 mm, Dm = - mm
Price
Call
Model
TB 44 H 300
Model description
Number of teeth = 44 , Type = 9WF Taper bushing = 2517 , Bore d2 = 16-65 mm DIMENSIONS : Dp = 177.87 mm , De = 176.50 mm, Df = 184 mm, F = 86 mm, S = 45 mm,R = 20.5 mm, Dm = - mm
Price
Call
Model
TB 48 H 300
Model description
Number of teeth = 48 , Type = 9WF Taper bushing = 2517 , Bore d2 = 16-65 mm DIMENSIONS : Dp = 194.04 mm , De = 192.67 mm, Df = 200 mm, F = 86 mm, S = 45 mm,R = 20.5 mm, Dm = 119 mm
Price
Call
Model
TB 60 H 300
Model description
Number of teeth = 60 , Type = 9A Taper bushing = 2517 , Bore d2 = 16-65 mm DIMENSIONS : Dp = 242.55 mm , De = 241.18 mm, Df = - mm, F = 86 mm, S = 45 mm,R = 20.5 mm, Dm = 119 mm
Price
Call
Model
TB 72 H 300
Model description
Number of teeth = 72 , Type = 9A Taper bushing = 2517 , Bore d2 = 16-65 mm DIMENSIONS : Dp = 291.06 mm , De = 289.69 mm, Df = - mm, F = 86 mm, S = 45 mm,R = 20.5 mm, Dm = 119 mm
Price
Call
Model
TB 84 H 300
Model description
Number of teeth = 84 , Type = 9A Taper bushing = 2517 , Bore d2 = 16-65 mm DIMENSIONS : Dp = 339.57 mm , De = 338.20 mm, Df = - mm, F = 86 mm, S = 45 mm,R = 20.5 mm, Dm = 119 mm
Price
Call
Model
TB 96 H 300
Model description
Number of teeth = 96 , Type = 9A Taper bushing = 3030 , Bore d2 = 35-75 mm DIMENSIONS : Dp = 388.08 mm , De = 386.71 mm, Df = - mm, F = 86 mm, S = 76 mm,R = 5 mm, Dm = 119 mm
Price
Call
Model
TB 120 H 300
Model description
Number of teeth = 120 , Type = 9A Taper bushing = 3030 , Bore d2 = 35-75 mm DIMENSIONS : Dp = 485.10 mm , De = 483.73 mm, Df = - mm, F = 86 mm, S = 76 mm,R = 5 mm, Dm = 119 mm
Price
Call
