OPTIBELT POWER TRANSMISSION

AT5 (width 10 mm)

ชื่อรุ่น :

AT5 (width 10 mm)

แบรนด์

Optibelt

รายละเอียด :

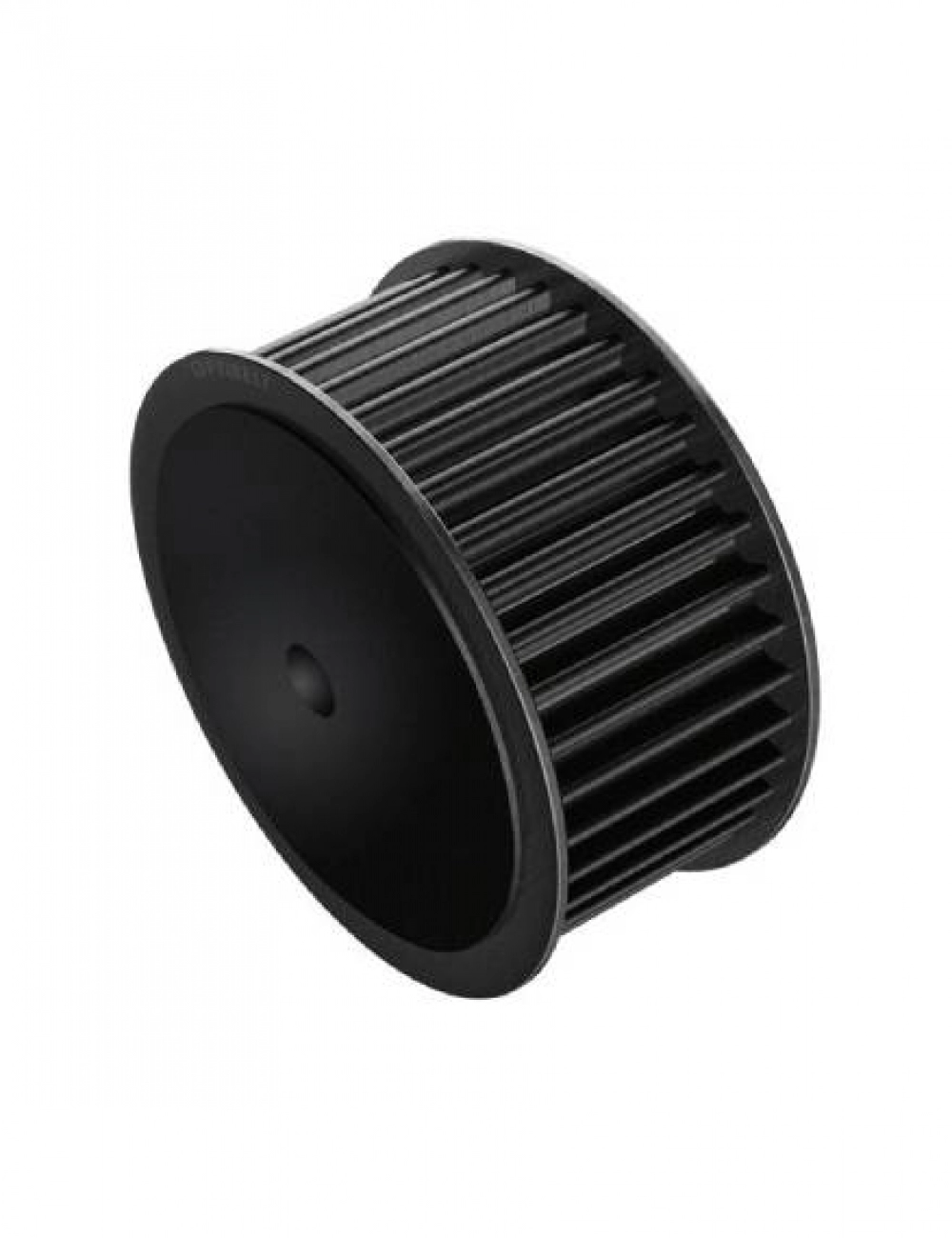

optibelt ZRS METRIC ( AT5 ) มู่เล่ย์สายพานไทม์มิ่ง สำหรับรูเพลามาตราฐาน - ขนาดเส้นผ่าศูนย์กลางของมู่เล่ย์ มีตั้งแต่ 19.01 - 95.52 มม. - ระยะ Pitch 5 mm - ความกว้างของสายพาน = 10 mm
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
21 AT5 / 12-2
Model description

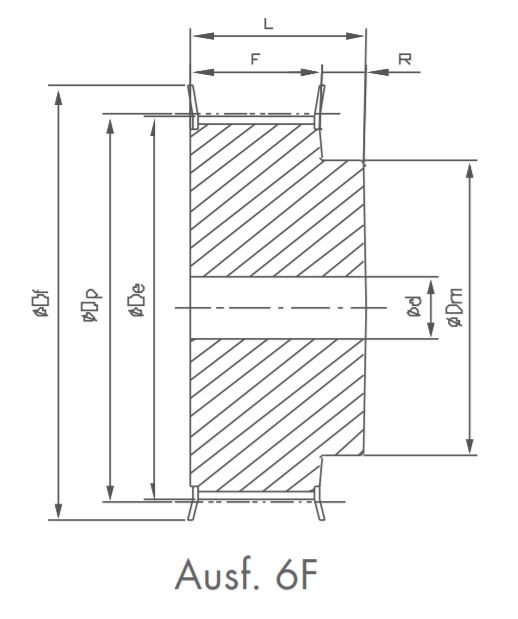

Number of teeth = 12 , Type = 6F Pilot bore = - mm , Finished bore hole dmax. = 6 mm DIMENSIONS : Dp = 19.01 mm , De = 17.85 mm, Df = 23 mm, F = 15 mm, Dm = 11 mm
Price
Call
Model
21 AT5 / 14-2
Model description
Number of teeth = 14 , Type = 6F Pilot bore = - mm , Finished bore hole dmax. = 8 mm DIMENSIONS : Dp = 22.29 mm , De = 21.05 mm, Df = 25 mm, F = 15 mm, Dm = 13 mm
Price
Call
Model
21 AT5 / 15-2
Model description
Number of teeth = 15 , Type = 6F Pilot bore = - mm , Finished bore hole dmax. = 10 mm DIMENSIONS : Dp = 23.88 mm , De = 22.65 mm, Df = 28 mm, F = 15 mm, Dm = 16 mm
Price
Call
Model
21 AT5 / 16-2
Model description
Number of teeth = 16 , Type = 6F Pilot bore = - mm , Finished bore hole dmax. = 11 mm DIMENSIONS : Dp = 25.47 mm , De = 24.20 mm, Df = 32 mm, F = 15 mm, Dm = 18 mm
Price
Call
Model
21 AT5 / 18-2
Model description
Number of teeth = 18 , Type = 6F Pilot bore = - mm , Finished bore hole dmax. = 12 mm DIMENSIONS : Dp = 28.65 mm , De = 27.40 mm, Df = 32 mm, F = 15 mm, Dm = 20 mm
Price
Call
Model
21 AT5 / 19-2
Model description
Number of teeth = 19 , Type = 6F Pilot bore = - mm , Finished bore hole dmax. = 12 mm DIMENSIONS : Dp = 30.25 mm , De = 29.00 mm, Df = 36 mm, F = 15 mm, Dm = 22 mm
Price
Call
Model
21 AT5 / 20-2
Model description
Number of teeth = 20 , Type = 6F Pilot bore = - mm , Finished bore hole dmax. = 14 mm DIMENSIONS : Dp = 31.83 mm , De = 30.60 mm, Df = 36 mm, F = 15 mm, Dm = 23 mm
Price
Call
Model
21 AT5 / 22-2
Model description
Number of teeth = 22 , Type = 6F Pilot bore = - mm , Finished bore hole dmax. = 15 mm DIMENSIONS : Dp = 35.12 mm , De = 33.85 mm, Df = 38 mm, F = 15 mm, Dm = 24 mm
Price
Call
Model
21 AT5 / 24-2
Model description
Number of teeth = 24 , Type = 6F Pilot bore = - mm , Finished bore hole dmax. = 15 mm DIMENSIONS : Dp = 38.21 mm , De = 37.00 mm, Df = 42 mm, F = 15 mm, Dm = 26 mm
Price
Call
Model
21 AT5 / 25-2
Model description
Number of teeth = 25 , Type = 6F Pilot bore = - mm , Finished bore hole dmax. = 15 mm DIMENSIONS : Dp = 39.80 mm , De = 38.60 mm, Df = 44 mm, F = 15 mm, Dm = 26 mm
Price
Call
Model
21 AT5 / 26-2
Model description
Number of teeth = 26 , Type = 6F Pilot bore = - mm , Finished bore hole dmax. = 16 mm DIMENSIONS : Dp = 41.47 mm , De = 40.20 mm, Df = 44 mm, F = 15 mm, Dm = 26 mm
Price
Call
Model
21 AT5 / 27-2
Model description
Number of teeth = 27 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 18 mm DIMENSIONS : Dp = 42.98 mm , De = 41.80 mm, Df = 48 mm, F = 15 mm, Dm = 30 mm
Price
Call
Model
21 AT5 / 28-2
Model description
Number of teeth = 28 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 18 mm DIMENSIONS : Dp = 44.62 mm , De = 43.35 mm, Df = 48 mm, F = 15 mm, Dm = 32 mm
Price
Call
Model
21 AT5 / 30-2
Model description
Number of teeth = 30 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 18 mm DIMENSIONS : Dp = 47.76 mm , De = 46.55 mm, Df = 51 mm, F = 15 mm, Dm = 34 mm
Price
Call
Model
21 AT5 / 32-2
Model description
Number of teeth = 32 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 22 mm DIMENSIONS : Dp = 50.94 mm , De = 49.70 mm, Df = 54 mm, F = 15 mm, Dm = 36 mm
Price
Call
Model
21 AT5 / 36-2
Model description
Number of teeth = 36 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 22 mm DIMENSIONS : Dp = 57.31 mm , De = 56.05 mm, Df = 64 mm, F = 15 mm, Dm = 38 mm
Price
Call
Model
21 AT5 / 40-2
Model description
Number of teeth = 40 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 23 mm DIMENSIONS : Dp = 63.66 mm , De = 62.45 mm, Df = 66.5 mm, F = 15 mm, Dm = 40 mm
Price
Call
Model
21 AT5 / 42-2
Model description
Number of teeth = 42 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 24 mm DIMENSIONS : Dp = 66.87 mm , De = 65.60 mm, Df = 70 mm, F = 15 mm, Dm = 40 mm
Price
Call
Model
21 AT5 / 44-0
Model description

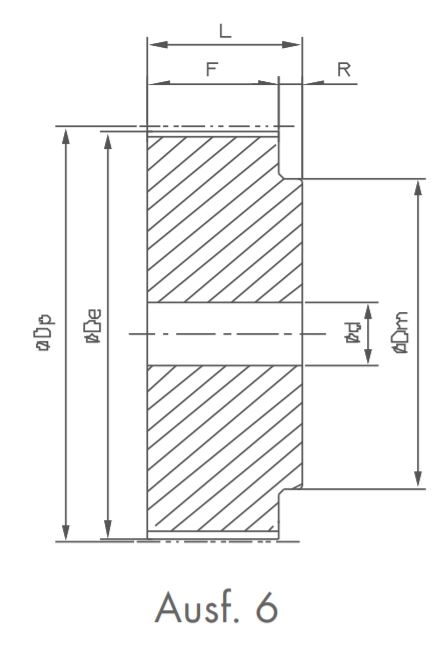

Number of teeth = 44 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 26 mm DIMENSIONS : Dp = 70.07 mm , De = 68.80 mm, Df = - mm, F = 15 mm, Dm = 45 mm
Price
Call
Model
21 AT5 / 48-0
Model description
Number of teeth = 48 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 28 mm DIMENSIONS : Dp = 76.42 mm , De = 75.15 mm, Df = - mm, F = 15 mm, Dm = 50 mm
Price
Call
Model
21 AT5 / 60-0
Model description
Number of teeth = 60 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 35 mm DIMENSIONS : Dp = 95.52 mm , De = 94.25 mm, Df = - mm, F = 15 mm, Dm = 65 mm
Price
Call
